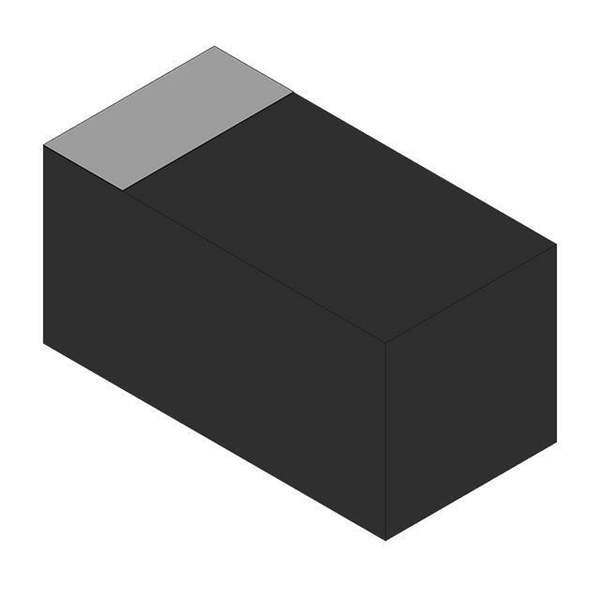

PMEG4005AESFCYL Nexperia USA Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PMEG4005AESFCYL

Part No PMEG4005AESFCYL
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description Diode 40 V 500mA Surface Mount DSN0603-2
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Mfr Nexperia USA Inc.
Packaging Bulk
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 500mA
Voltage - Forward (Vf) (Max) @ If 820 mV @ 500 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 1.25 ns
Current - Reverse Leakage @ Vr 80 µA @ 40 V
Capacitance @ Vr, F 18pF @ 1V, 1MHz
Mounting Type Surface Mount
Package / Case 0201 (0603 Metric)
Supplier Device Package DSN0603-2
Operating Temperature - Junction 150°C
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 1477558-PMEG4005AESFCYL
Ultra Librarian 3D Model Ultra Librarian PMEG4005AESFCYL CAD Model
