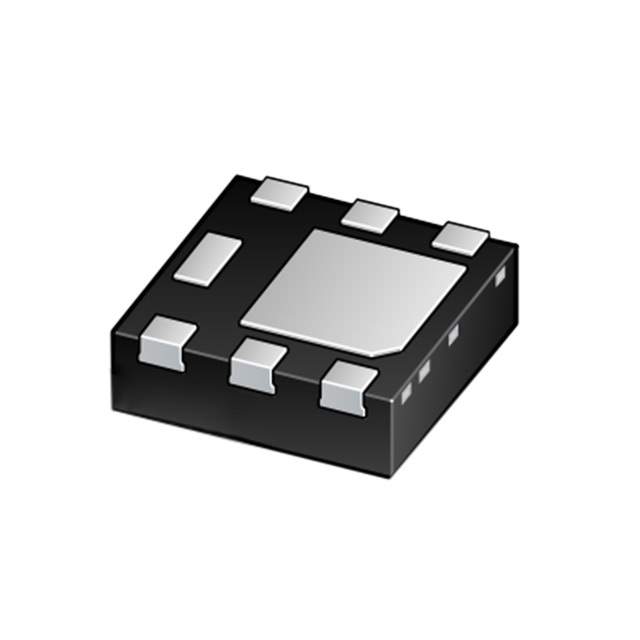

PMPB20XNEAZ Real Image
Same model may have multiple batches, images only for reference.

PMPB20XNEAZ

Part No PMPB20XNEAZ
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 20V 7.5A DFN2020MD-6  /  N-Channel 20 V 7.5A (Ta) 460mW (Ta), 12.5W (Tc) Surface Mount DFN2020MD-6
Datasheet
PMPB20XNEAZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 20 V
Current - Continuous Drain (Id) @ 25°C 7.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 2.5V, 4.5V
Rds On (Max) @ Id, Vgs 20mOhm @ 7.5A, 4.5V
Vgs(th) (Max) @ Id 1.25V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 15 nC @ 4.5 V
Vgs (Max) ±12V
Input Capacitance (Ciss) (Max) @ Vds 930 pF @ 10 V
Power Dissipation (Max) 460mW (Ta), 12.5W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Supplier Device Package DFN2020MD-6
Package / Case 6-UDFN Exposed Pad
Base Product Number PMPB20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names PMPB20XNEAZ-ND,1727-8339-2,934069561184,1727-8339-6,1727-8339-1
Standard Package 3,000
Win Source Part Number 1126969-PMPB20XNEAZ
Ultra Librarian 3D Model Ultra Librarian PMPB20XNEAZ CAD Model

Description

The PMPB20XNEAZ is a high-quality N-Channel MOSFET transistor designed for use in electronic circuits that require high precision and accuracy manufactured by Nexperia USA Inc.

  • Series: This component belongs to the Automotive, AEC-Q101 series
  • Drain to Source Voltage: has a maximum drain to source voltage of 20 V.
  • Power Dissipation: With a maximum power dissipation of 460mW (Ta), this component is highly efficient and reliable.
  • Package/Case: It has a unique package/ case of 6-UDFN Exposed Pad
  • Gate Charge: has a gate charge (Qg) (Max) @ Vgs of 15 nC @ 4.5 V.
