PMPB27EP,115 Nexperia USA Inc. PMPB27EP,115 Real Image
Same model may have multiple batches, images only for reference.
PMPB27EP,115 Nexperia USA Inc. PMPB27EP,115 Real Image
PMPB27EP,115 Nexperia USA Inc. PMPB27EP,115 Real Image
Same model may have multiple batches, images only for reference.

PMPB27EP,115

Part No PMPB27EP,115
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 30V 6.1A 6DFN
Datasheet
PMPB27EP,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 6.1A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2.5V @ 250μA
Max Gate Charge 45nC @ 10V
Max Input Capacitance 1570pF @ 15V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 1.7W (Ta), 12.5W (Tc)
Maximum Rds On at Id,Vgs 29 mOhm @ 6.1A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)

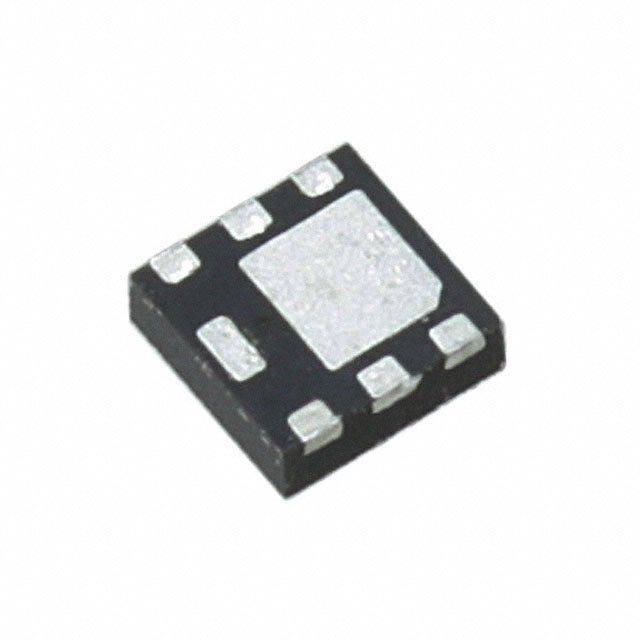

Case / Package 6-DFN2020MD (2x2)
Dimension 6-UDFN Exposed Pad
Win Source Part Number 1089735-PMPB27EP,115
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PMPB27EP,115 CAD Model

Description

The 1089735-PMPB27EP,115 is a P-channel MOSFET from Nexperia USA Inc.

  • Package: 6-DFN2020MD (2x2)
  • Drain-Source Breakdown Voltage: 30V
  • Continuous Drain Current @ 25°C: 6.1A
  • Gate-Source Threshold Voltage: 2.5V @ 250μA
  • Maximum Gate Charge: 45nC @ 10V
  • Maximum Input Capacitance: 1570pF @ 15V
  • Maximum Rds On: 29 mOhm @ 6.1A, 10V
  • Product Status: Active
  • Popularity: Medium
  • Supply and Demand: Balanced
