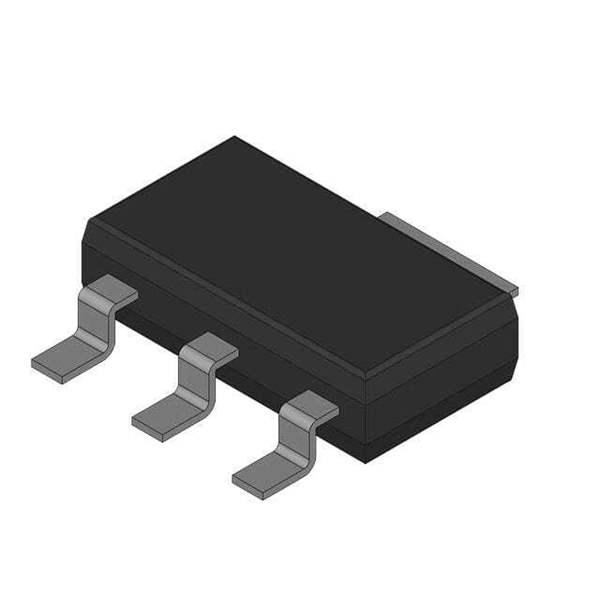

The 890102-PMT200EPEAX is a single P-Channel MOSFET transistor from Nexperia USA Inc.

• Series: Automotive AEC-Q101
• Application: Discrete semiconductor products
• Mounting: Surface mountable
• Package: TO-261-4, TO-261AA
• Drain to Source Voltage: 70 V
• Continuous Drain Current: 2.4A @ 25°C
• Maximum On-Resistance: 167mOhm @ 2.4A and 10V
• Gate Threshold Voltage: 3V @ 250µA
• Power Dissipation: 800mW @ Ta
• Maximum Gate Charge: 15.9 nC @ 10V
• Input Capacitance: 822 pF @ 35V
• Maximum Vgs: ±20V
• Operating Temperature: -55°C to 150°C
• Product Status: Active
• Standard Package: 1,000 pcs
• REACH: Not affected
