The Nexperia PMZB420UN,315 is an N-channel MOSFET with a drain-source breakdown voltage of 30V and a maximum continuous drain current of 900mA @ 25°C.

• Drain-Source Breakdown Voltage: 30V
• Maximum Continuous Drain Current: 900mA @ 25°C
• Maximum Rds On: 490 mOhm @ 200mA and 4.5V
• Gate-Source Threshold Voltage: 950mV @ 250μA
• Maximum Gate Charge: 0.98nC @ 4.5V
• Maximum Input Capacitance: 65pF @ 25V
• Maximum Gate-Source Voltage: ±8V

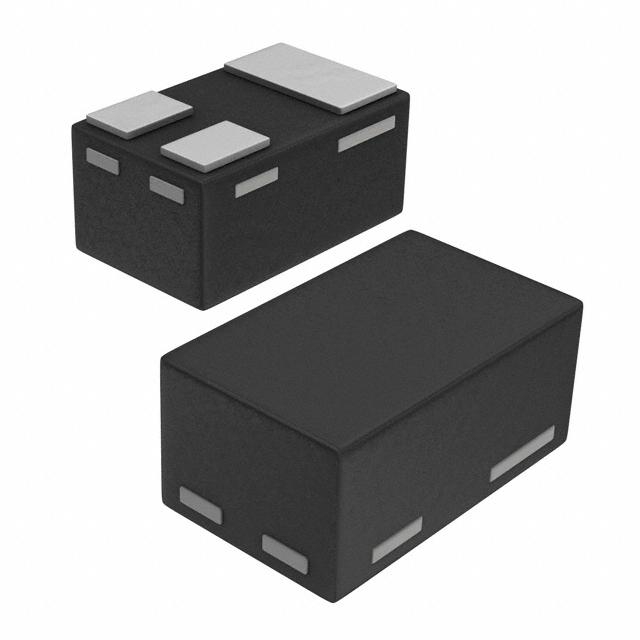

• Package: 3-DFN1006B (0.6x1)
• Exposed Pad: Yes
• Suitable For: Discrete Semiconductor Products
• Power Dissipation: 360mW (Ta) and 2.7W (Tc)
• Drive Voltage: Maximum of 1.8V and a minimum of 4.5V for both max Rds On and min Rds On
• Operating Temperature Range: -55°C to 150°C (TJ)
• Status: Obsolete (EOL)
• Package: Reel package of 10k pcs
