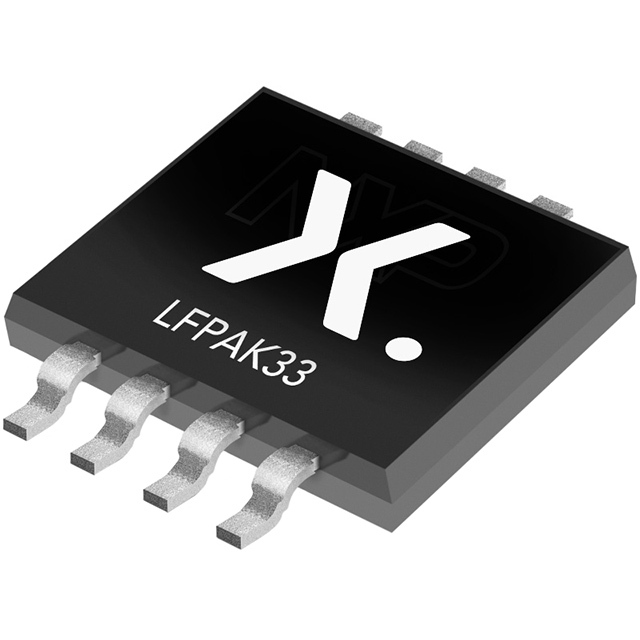

PSMN2R8-25MLC,115

Name: PSMN2R8-25MLC,115
Brand: Nexperia USA Inc.
SKU: 1016385
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PSMN2R8-25MLC,115
Manufacturer	Nexperia USA Inc.
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 25V 70A LFPAK33 / N-Channel 25 V 70A (Tc) 88W (Tc) Surface Mount LFPAK33
Datasheet	PSMN2R8-25MLC,115 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Nexperia USA Inc.
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25 V
Current - Continuous Drain (Id) @ 25°C	70A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	2.8mOhm @ 25A, 10V
Vgs(th) (Max) @ Id	2.15V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	37.7 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2432 pF @ 12.5 V
Power Dissipation (Max)	88W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	LFPAK33
Package / Case	SOT-1210, 8-LFPAK33 (5-Lead)
Base Product Number	PSMN2R8
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	568-9572-6,1727-7139-6,568-9572-2,934066944115,568-9572-1,PSMN2R825MLC115,568-9572-1-ND,568-9572-6-ND,1727-7139-2,568-9572-2-ND,1727-7139-1
Standard Package	1,500
Win Source Part Number	1016385-PSMN2R8-25MLC,115
Ultra Librarian 3D Model	Ultra Librarian PSMN2R8-25MLC,115 CAD Model

Alternative Products

Description

The PSMN2R8-25MLC,115 is an N-channel MOSFET designed for use in discrete semiconductor products.

Drain to Source Voltage: 25V
Continuous Drain Current: 70A (Tc)
Rds On: 2.8mOhm @ 25A, 10V
Gate Charge: 37.7 nC @ 10 V
Package: SOT-1210, 8-LFPAK33 (5-Lead) package
Supplied: in tape and reel form
Operating Temperature Range: -55°C to 175°C
ECCN: EAR99 compliant
REACH: unaffected
