Same model may have multiple batches, images only for reference.

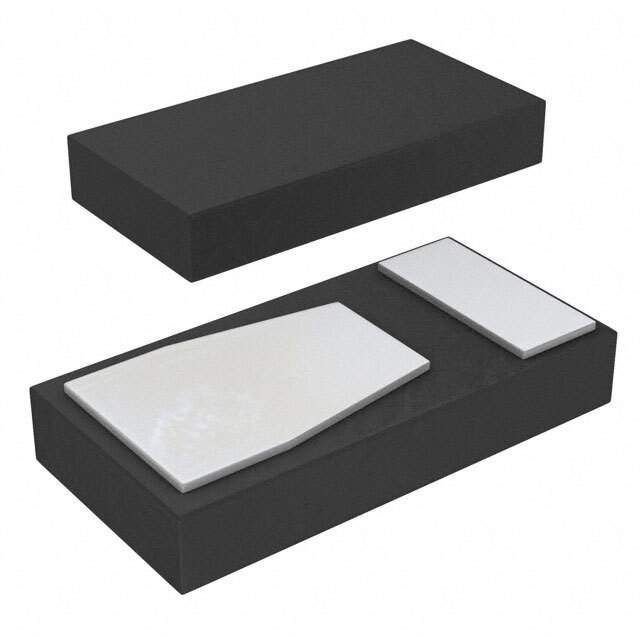

PTVS15VZ1USKYL Real Image
Same model may have multiple batches, images only for reference.

PTVS15VZ1USKYL

Part No PTVS15VZ1USKYL
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 15VWM 27.4VC DSN1608-2 / 27.4V Clamp 7.5A Ipp Tvs Diode Surface Mount DSN1608-2
Datasheet
PTVS15VZ1USKYL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Nexperia USA Inc.
Package Tape & Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 15V (Max)
Voltage - Breakdown (Min) 16.7V
Voltage - Clamping (Max) @ Ipp 27.4V
Current - Peak Pulse (10/1000µs) 7.5A
Power - Peak Pulse 200W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 340pF @ 1MHz
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric)
Supplier Device Package DSN1608-2
Base Product Number PTVS15
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 934069212315,568-13312-1,568-13312-2,1727-2745-6,568-13312-6,NEXNXPPTVS15VZ1USKYL,2156-PTVS15VZ1USKYL-NEX,1727-2745-1,1727-2745-2,568-13312-1-ND,568-13312-2-ND,568-13312-6-ND,PTVS15VZ1USK
Standard Package 10,000
Win Source Part Number 1086337-PTVS15VZ1USKYL
Ultra Librarian 3D Model Ultra Librarian PTVS15VZ1USKYL CAD Model

Description

The PTVS15VZ1USKYL is a Zener diode that belongs to the TVS - Diodes category.

  • Applications: general purpose applications
  • Reverse Standoff Voltage: 15 V
  • Breakdown Voltage: 16.7 V
  • Peak Pulse Power: 200 W
  • Peak Pulse Current: 7.5 A
  • Manufacturer: Nexperia USA Inc.
  • Packaging: tape and reel
