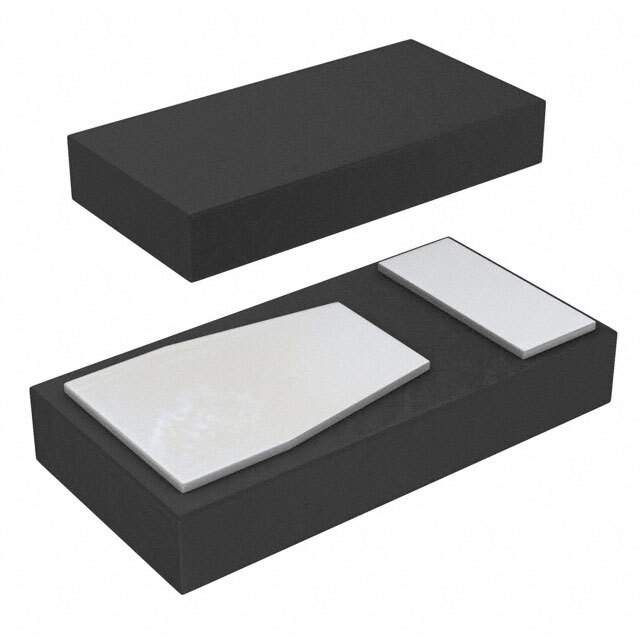

PTVS5V0Z1USKPYL Real Image1 PTVS5V0Z1USKPYL Real Image2
Same model may have multiple batches, images only for reference.
PTVS5V0Z1USKPYL Real Image1 PTVS5V0Z1USKPYL Real Image2
PTVS5V0Z1USKPYL Real Image1 PTVS5V0Z1USKPYL Real Image2
Same model may have multiple batches, images only for reference.

PTVS5V0Z1USKPYL

Part No PTVS5V0Z1USKPYL
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 5VWM 12VC DSN1608-2
Datasheet
PTVS5V0Z1USKPYL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 19 Weeks
Features 12V Clamp 20A Ipp Tvs Diode Surface Mount DSN1608-2
Manufacturer Nexperia USA Inc.
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C (TA)
Mounting Surface Mount
Package 0603 (1608 Metric)
Case / Package DSN1608-2
Family Name PTVS5V0
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 1727-7822-2, 1727-7822-6, 934070853315, 1727-7822-1, PTVS5V0Z1USKPYL-ND
Quantity per package 10000
Popularity High
Supply and Demand Status Limited
Win Source Part Number 890463-PTVS5V0Z1USKPYL
Ultra Librarian 3D Model Ultra Librarian PTVS5V0Z1USKPYL CAD Model

Description

The PTVS5V0Z1USKPYL is a surface mount TVS diode from Nexperia USA Inc. that offers reliable protection against voltage transients.

  • Clamp: 12V
  • Ipp: 20A
  • Operating Temperature: -40°C to 125°C (TA)
  • Package: DSN1608-2
  • Family: PTVS5V0
  • Package Quantity: 10,000
  • Popularity: High
  • Supply and Demand Status: Limited
  • Production Lead Time: 19 weeks
  • REACH: Unaffected
  • HTSUS: 8541.10.0080
