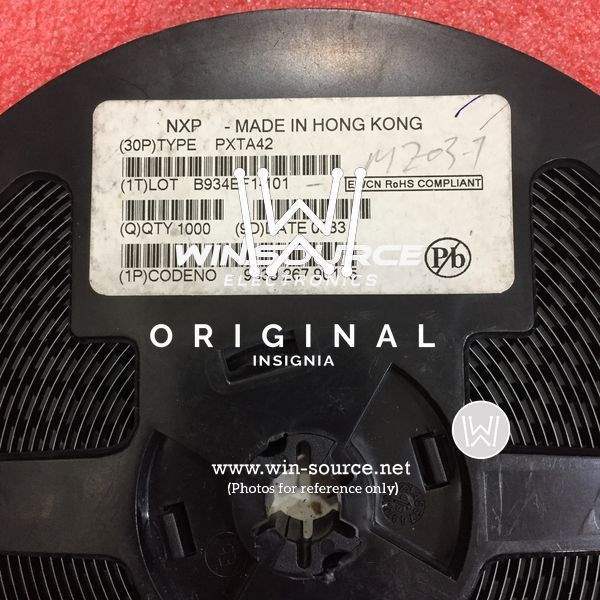

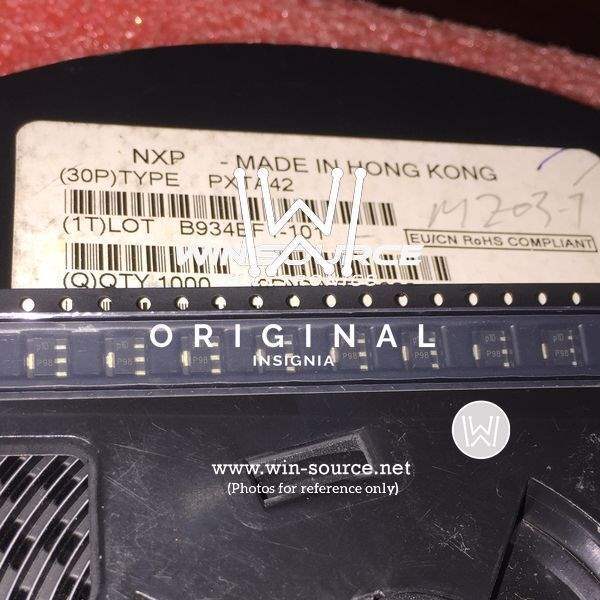

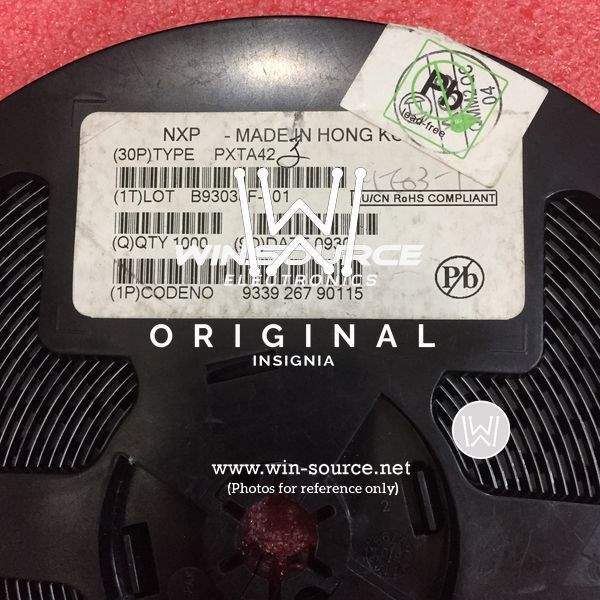

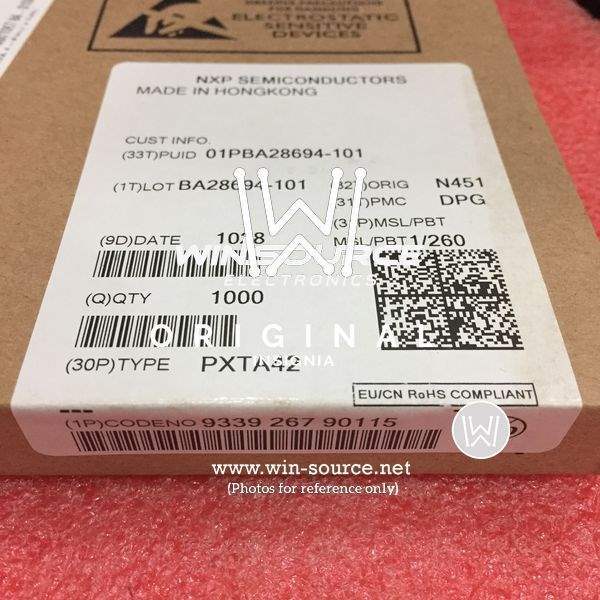

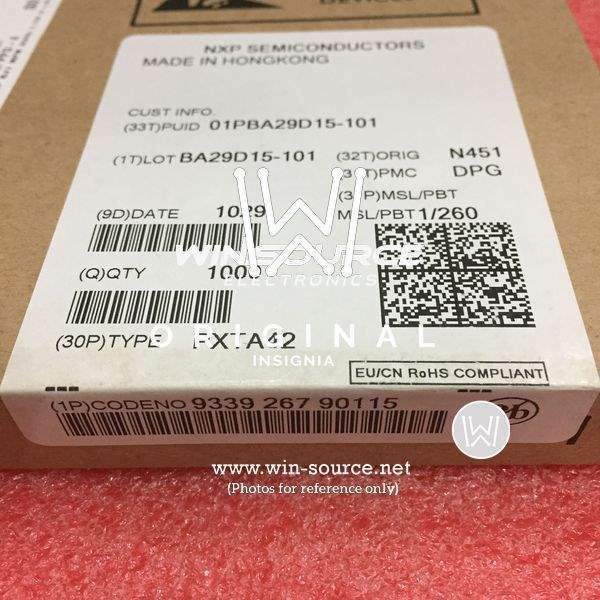

PXTA42,115 Nexperia USA Inc. PXTA42,115 label picture PXTA42,115 label picture 2 PXTA42,115 label picture 3 PXTA42,115 label picture 4 PXTA42,115 real image
Same model may have multiple batches, images only for reference.
PXTA42,115 Nexperia USA Inc. PXTA42,115 label picture PXTA42,115 label picture 2 PXTA42,115 label picture 3 PXTA42,115 label picture 4 PXTA42,115 real image
PXTA42,115 Nexperia USA Inc. PXTA42,115 label picture PXTA42,115 label picture 2 PXTA42,115 label picture 3 PXTA42,115 label picture 4 PXTA42,115 real image
Same model may have multiple batches, images only for reference.

PXTA42,115

Part No PXTA42,115
Manufacturer Nexperia USA Inc.
Catalog Transistors (BJT) - Single
Description Trans GP BJT NPN 300V 0.2A 1300mW Automotive 4-Pin(3+Tab) SOT-89 T/R / TRANS NPN 300V 0.1A SOT89
Datasheet
PXTA42,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Transistor Polarity NPN
Maximum Current Collector 100mA
VCEO Maximum Collector-Emitter Breakdown Voltage 300V
Max Vce (sat) 500mV @ 2mA, 20mA
Collector Cut-off Current(Max) 100nA (ICBO)
Typical Gain (hFE) (Min) 40 @ 30mA, 10V
Maximum Power Dissipation 1.3W
Frequency - Transition 50MHz
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-89-3
Win Source Part Number 1090848-PXTA42,115
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name PXTA42
Introduction Date November 15, 1996
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian PXTA42,115 CAD Model

Description

The PXTA42,115 from Nexperia USA Inc. is an NPN transistor that comes in a SOT-89-3 package.

  • Maximum Current Collector: 100mA
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 300V
  • Typical Gain (hFE) (Min): 40 @ 30mA, 10V
  • Collector Cut-off Current (Max): 100nA (ICBO)
  • Status: Active
  • Category: Discrete Semiconductor Products
  • Popularity: High
  • Temperature Range: 150°C (TJ)
