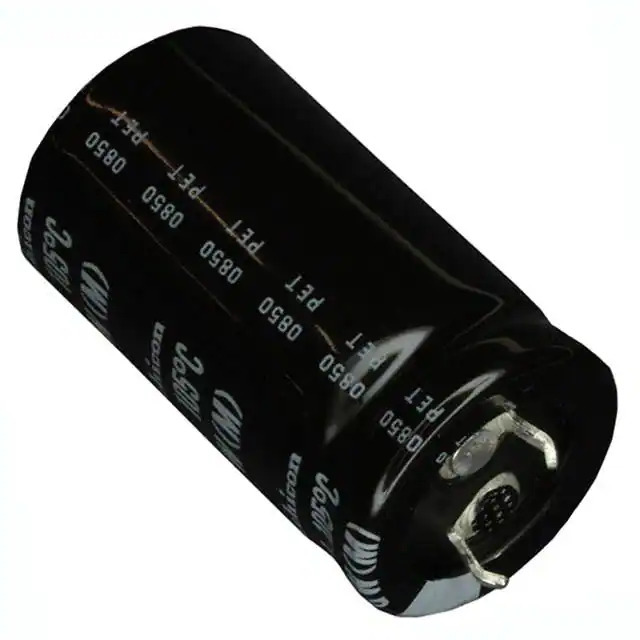

Same model may have multiple batches, images only for reference.
LGW2G101MELZ25 Nichicon
Same model may have multiple batches, images only for reference.

LGW2G101MELZ25

Part No LGW2G101MELZ25
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 400V SNAP / 100 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Datasheet
LGW2G101MELZ25 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series LGW
Package Bulk
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 400 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.02 A @ 120 Hz
Ripple Current @ High Frequency 1.4586 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 0.866" Dia (22.00mm)
Height - Seated (Max) 0.984" (25.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360680-LGW2G101MELZ25
Ultra Librarian 3D Model Ultra Librarian LGW2G101MELZ25 CAD Model

Description

The LGW2G101MELZ25 is a radial, can - snap-in aluminum electrolytic capacitor from Nichicon.

  • Capacitance: 100 µF
  • Voltage Rating: 400 V
  • Operating Temperature: -25°C to 105°C
  • Application: General Purpose
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 1.02 A @ 120 Hz
  • Ripple Current (High Frequency): 1.4586 A @ 50 kHz
  • Lead Spacing: 0.394" (10.00mm)
  • Size: 0.866" Dia (22.00mm)
  • Seated Height: 0.984" (25.00mm)
  • Mounting Type: Through Hole
  • Package: Bulk
  • Lifetime: 3000 hours @ 105°C
  • Status: Active
  • REACH Status: Unaffected
