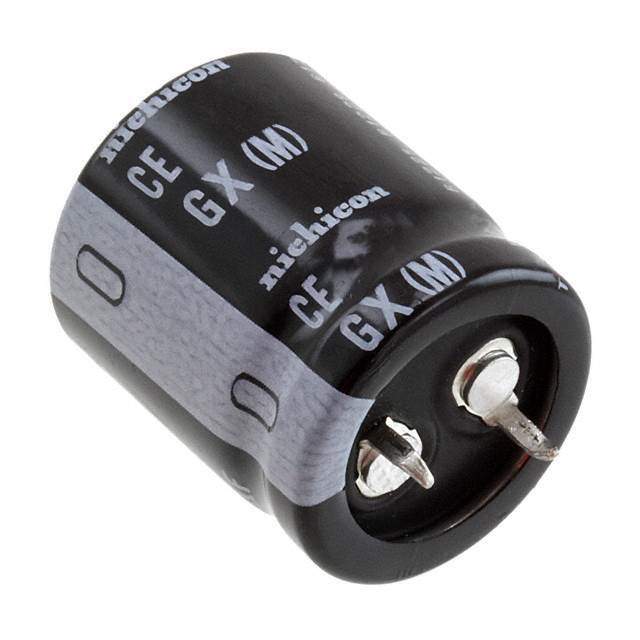

LGX2D331MELZ25 Real Image
Same model may have multiple batches, images only for reference.

LGX2D331MELZ25

Part No LGX2D331MELZ25
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 330UF 20% 200V SNAP  /  330 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series LGX
Package Bulk
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 200 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.1 A @ 120 Hz
Ripple Current @ High Frequency 1.65 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Dimension 0.866" Dia (22.00mm)
Height - Seated (Max) 1.063" (27.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Other Names 493-7861
Standard Package 250
Win Source Part Number 1218746-LGX2D331MELZ25
Ultra Librarian 3D Model Ultra Librarian LGX2D331MELZ25 CAD Model

Description

The LGX series of aluminum electrolytic capacitors from Nichicon is ideal for use in general-purpose applications.

  • Capacitance: 330µF
  • Tolerance: ±20%
  • Voltage: 200V
  • Lead Spacing: 0.394 inches (10.00mm)
  • ESR: Not specified
  • Lifetime @ Temperature: 5000 hours @ 105°C
  • Polarization: Polar
  • Surface Mount Land Size: Not specified
  • Mounting: Through-hole
  • Package/Case: Radial, can-snap-in
  • Operating Temperature: -25°C to 105°C
  • Seated Height: 1.063 inches (27.00mm)
  • Diameter: 0.866 inches (22.00mm)
  • Part Number: LGX2D331MELZ25
  • Sold In: Bulk
  • Standard Package: 250
  • RoHS Compliant: Yes
  • REACH Status: Unaffected
