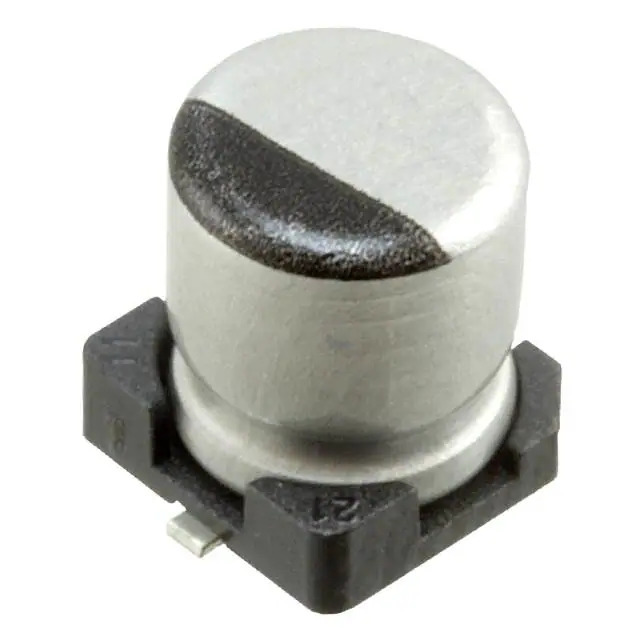

UCD1A330MCL1GS Nichicon
Same model may have multiple batches, images only for reference.

UCD1A330MCL1GS

Part No UCD1A330MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 33UF 20% 10V SMD / 33 µF 10 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet
UCD1A330MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCD
Package Tape & Reel
Product Status Active
Capacitance 33 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 80 mA @ 120 Hz
Ripple Current @ High Frequency 160 mA @ 100 kHz
Impedance 700 mOhms
Lead Spacing -
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360267-UCD1A330MCL1GS
Ultra Librarian 3D Model Ultra Librarian UCD1A330MCL1GS CAD Model

Description

The UCD1A330MCL1GS is an aluminum electrolytic capacitor from Nichicon's UCD series. It has a capacitance of 33 μF and is rated for a voltage of 10 V.

  • Capacitance: 33 μF
  • Voltage Rating: 10 V
  • Application: Automotive
  • Mounting Type: Surface Mount
  • Operating Temperature: -55°C to 105°C
  • Lifetime: 2000 hours @ 105°C
  • Ripple Current (120 Hz): 80 mA
  • Ripple Current (100 kHz): 160 mA
  • Package: Radial, Can - SMD
  • Surface Mount Land Size: 0.209" L x 0.209" W (5.30mm x 5.30mm)
  • Status: Active
  • Packaging: Tape & Reel
  • REACH Affected: No
  • ECCN: EAR99
  • Polarization: Polar
  • Impedance: 700 mOhms
