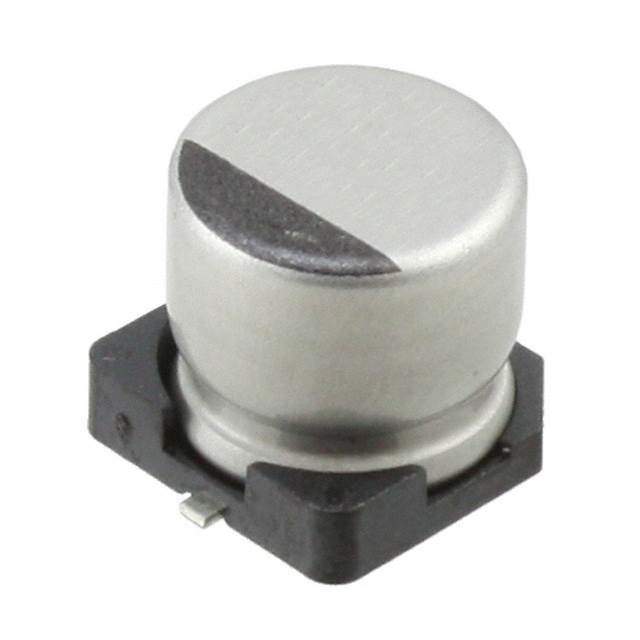

Same model may have multiple batches, images only for reference.

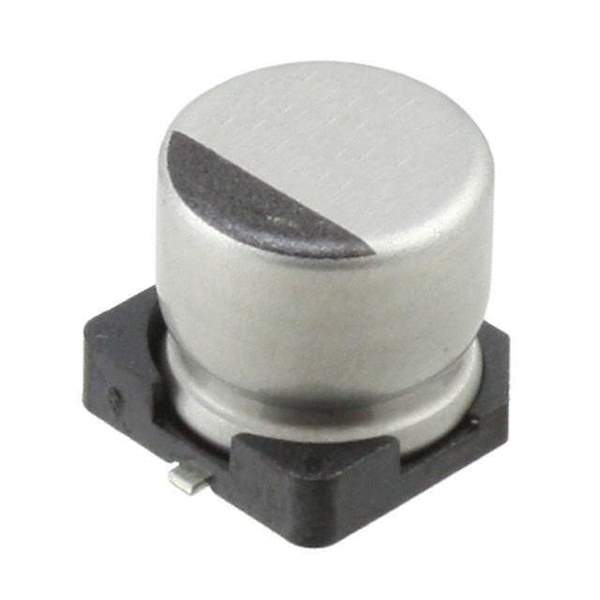

UCL1E330MCL1GS Real Image
Same model may have multiple batches, images only for reference.

UCL1E330MCL1GS

Part No UCL1E330MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 33UF 20% 25V SMD / 33 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet
UCL1E330MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCL
Package Tape & Reel
Capacitance 33 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 150 mA @ 120 Hz
Ripple Current @ High Frequency 300 mA @ 100 kHz
Impedance 260 mOhms
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.228" (5.80mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1336990-UCL1E330MCL1GS
Ultra Librarian 3D Model Ultra Librarian UCL1E330MCL1GS CAD Model

Description

The UCL1E330MCL1GS is an aluminum electrolytic capacitor from Nichicon.

  • Manufacturer: Nichicon
  • Series: UCL
  • Capacitance: 33 µF
  • Tolerance: ±20%
  • Voltage - Rated: 25 V
  • ESR: Not specified
  • Impedance: 260 mOhms
  • Ripple Current: 150 mA @ 120 Hz, 300 mA @ 100 kHz
  • Lifetime @ Temp.: 2000 Hrs @ 105°C
  • Package / Case: Radial, Can - SMD
  • Mounting Type: Surface Mount
  • Operating Temperature: -55°C to 105°C
  • Height - Seated (Max): 0.228" (5.80mm)
  • Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Packaging: Tape & Reel
  • Standard Package: 1,000
  • Polarization: Polarized
