Same model may have multiple batches, images only for reference.

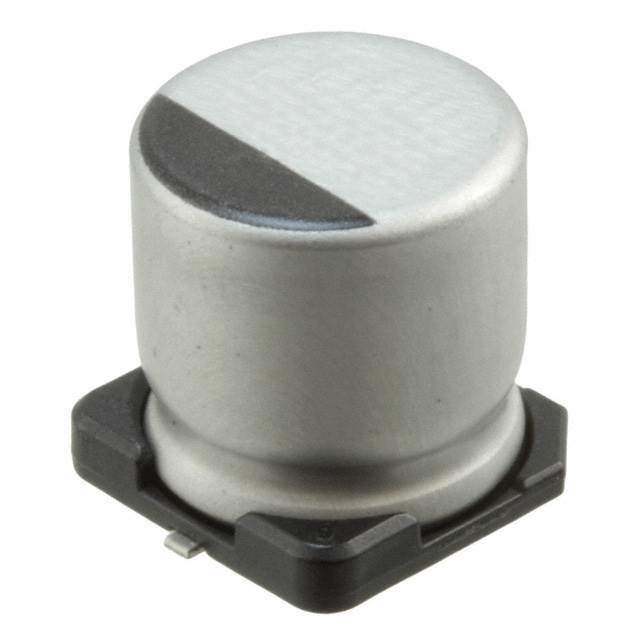

UCM1H331MNL1GS Real Image
Same model may have multiple batches, images only for reference.

UCM1H331MNL1GS

Part No UCM1H331MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 330UF 20% 50V SMD / 330 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Nichicon
Packaging Reel - TR
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 450 mA @ 120 Hz
Ripple Current @ High Frequency 900 mA @ 100 kHz
Impedance 120 mOhms
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 493-14535-6,493-14535-1,493-14535-2,UCM1H331MNL1GS-ND
Standard Package 500
Win Source Part Number 1328723-UCM1H331MNL1GS
Ultra Librarian 3D Model Ultra Librarian UCM1H331MNL1GS CAD Model

Description

The Nichicon UCM1H331MNL1GS is a surface mount aluminum electrolytic capacitor designed for automotive applications.

  • Capacitance: 330µF
  • Voltage Rating: 50V
  • Tolerance: ±20%
  • Impedance: 120mOhms
  • Polarized: Yes
  • Ripple Current Rating: 450mA @ 120Hz and 900mA @ 100kHz
  • Operating Temperature: -55°C to 105°C
  • Package: Radial, Can - SMD
  • Diameter: 0.394"
  • Applications: Automotive Power Supply and Filter
