Same model may have multiple batches, images only for reference.

UCW1H101MNL1GS

Name: UCW1H101MNL1GS
Brand: Nichicon
SKU: 852146
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UCW1H101MNL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 50V SMD
Datasheet	UCW1H101MNL1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCW
Package	Tape & Reel
Product Status	Active
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	50 V
Lifetime @ Temp.	7000 Hrs @ 105°C
Temperature Range - Operating	-25°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	175 mA @ 120 Hz
Ripple Current @ High Frequency	350 mA @ 100 kHz
Impedance	530 mOhms
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.394" (10.00mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Standard Package	500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	852146-UCW1H101MNL1GS
Ultra Librarian 3D Model	Ultra Librarian UCW1H101MNL1GS CAD Model

Alternative Products

Description

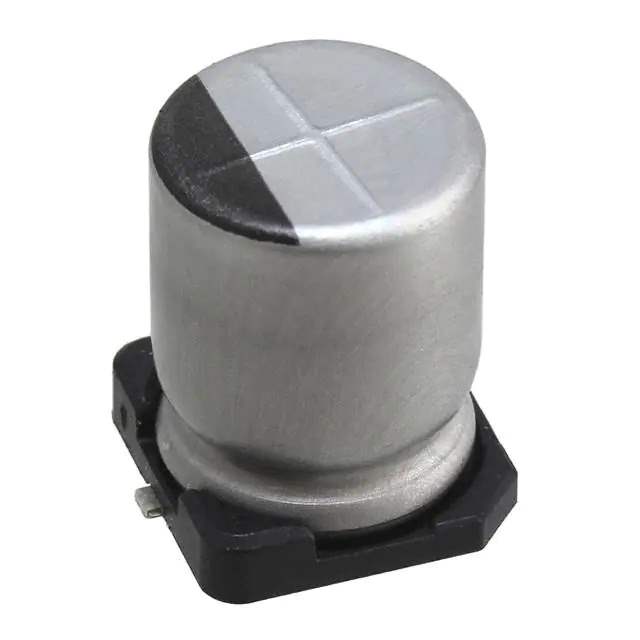

The UCW1H101MNL1GS is a general-purpose aluminum electrolytic capacitor from the UCW series.

Capacitance: 100µF
Voltage Rating: 50V
Package: Radial, Can - SMD
Size: 0.315" Dia (8.00mm)
Height: 0.394" (10.00mm)
Tolerance: ±20%
Impedance: 530 mOhms
Application: Automotive, consumer electronics, and industrial equipment
Lifetime: 7000 hours @ 105°C
Mounting Type: Surface Mount
Manufacturer: Nichicon
Status: Active
