Same model may have multiple batches, images only for reference.

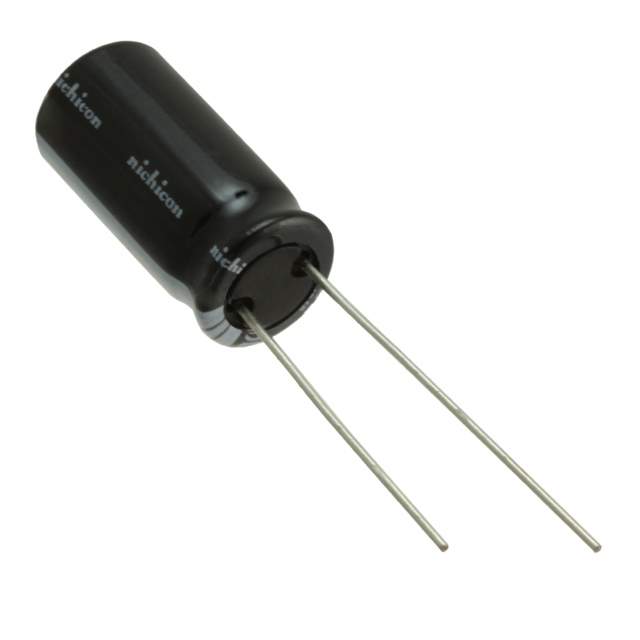

UHD1V221MPD Real Image
Same model may have multiple batches, images only for reference.

UHD1V221MPD

Part No UHD1V221MPD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 35V RADIAL / 220 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
Datasheet
UHD1V221MPD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UHD
Package Bulk
Product Status Not For New Designs
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 696.5 mA @ 120 Hz
Ripple Current @ High Frequency 995 mA @ 100 kHz
Impedance 56 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.650" (16.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 2,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1340769-UHD1V221MPD
Ultra Librarian 3D Model Ultra Librarian UHD1V221MPD CAD Model

Description

The UHD aluminum electrolytic capacitor is a general-purpose component that comes in a radial can package from Nichicon.

  • Size / Dimension: 0.315" Dia (8.00mm)
  • Capacitance: 220 µF
  • Tolerance: ±20%
  • Voltage - Rated: 35V
  • Lead Spacing: 0.138" (3.50mm)
  • Impedance: 56 mOhms
  • Ripple Current @ Low Frequency: 696.5 mA @ 120 Hz
  • Ripple Current @ High Frequency: 995 mA @ 100 kHz
  • Operating Temperature: -40°C ~ 105°C
  • Lifetime @ Temp.: 3000 Hrs @ 105°C
  • Packaging: Bulk
