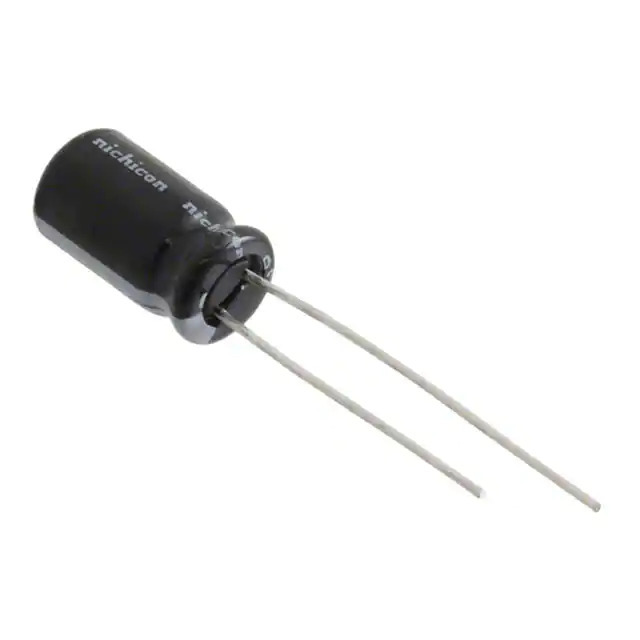

Same model may have multiple batches, images only for reference.
UHV1V101MED Nichicon
Same model may have multiple batches, images only for reference.

UHV1V101MED

Part No UHV1V101MED
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 35V RADIAL / 100 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Datasheet
UHV1V101MED Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UHV
Package Bulk
Product Status Obsolete
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 220 mA @ 120 Hz
Ripple Current @ High Frequency 550 mA @ 100 kHz
Impedance 100 mOhms
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357704-UHV1V101MED
Ultra Librarian 3D Model Ultra Librarian UHV1V101MED CAD Model

Description

The UHV1V101MED is a radial, can type aluminum electrolytic capacitor from Nichicon.

  • Capacitance: 100 µF
  • Voltage - Rated: 35 V
  • Tolerance: ±20%
  • Applications: General Purpose
  • Ripple Current @ Low Frequency: 220 mA @ 120 Hz
  • Ripple Current @ High Frequency: 550 mA @ 100 kHz
  • Lead Spacing: 2.50mm
  • Size / Dimension: 6.30mm Diameter
  • Height - Seated (Max): 12.50mm
  • Lifetime @ Temp.: 5000 Hrs @ 105°C
  • Mounting Type: Through Hole
  • Status: Obsolete
  • REACH Status: Unaffected
  • ECCN: EAR99
  • Impedance: 100 mOhms
  • Polarization: Polar
