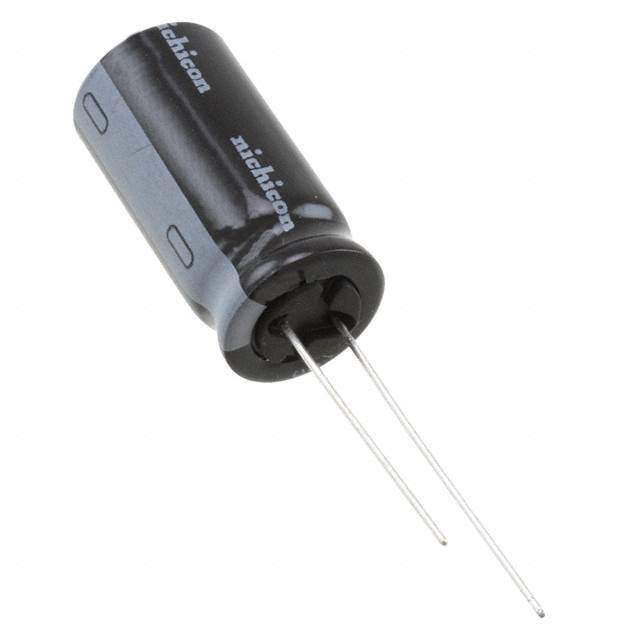

UHW1E222MHD Real Image
Same model may have multiple batches, images only for reference.

UHW1E222MHD

Part No UHW1E222MHD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 2200UF 20% 25V RADIAL  /  2200 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Datasheet
UHW1E222MHD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UHW
Package Bulk
Product Status Not For New Designs
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 2.4 A @ 120 Hz
Ripple Current @ High Frequency 3.2 A @ 100 kHz
Impedance 15 mOhms
Lead Spacing 0.197" (5.00mm)
Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.063" (27.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-6873
Standard Package 800
Win Source Part Number 1010657-UHW1E222MHD
Ultra Librarian 3D Model Ultra Librarian UHW1E222MHD CAD Model

Description

The 1010657-UHW1E222MHD Aluminum Electrolytic Capacitor is a high-quality component from Nichicon.

  • Series: UHW
  • Application: General Purpose
  • Package: Bulk
  • Standard Package: 800 units
  • Capacitance: 2200uF
  • Tolerance: ±20%
  • Voltage - Rated: 25V
  • Lead Spacing: 0.197" (5.00mm)
  • Impedance: 15mOhms
  • ESR (Equivalent Series Resistance): Not Applicable
  • Lifetime @ Temperature: 10000 Hrs @ 105 degrees Celsius
  • Polarization: Polar
  • Mounting Type: Through Hole
  • Package / Case: Radial, Can
  • Temperature Range: -40 degrees Celsius to 105 degrees Celsius
  • Dimension: 0.492" Dia (12.50mm)
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8532.22.0020
  • Ripple Current - Low Frequency: 2.4A @ 120 Hz
  • Ripple Current - High Frequency: 3.2A @ 100 kHz
