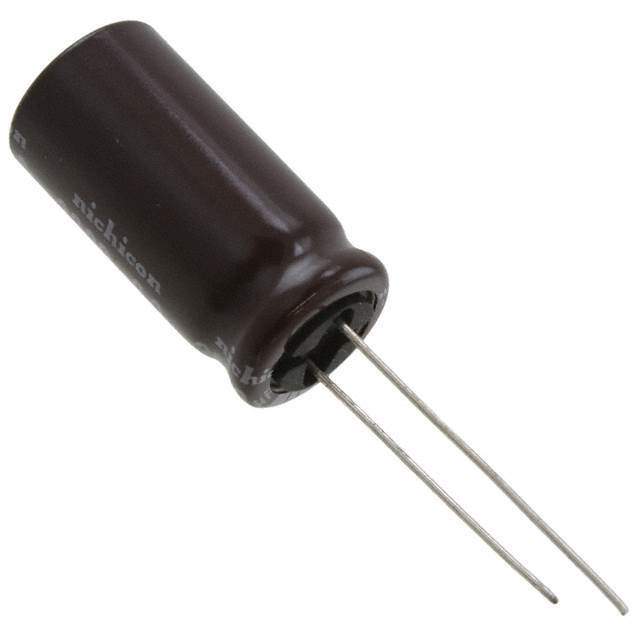

Same model may have multiple batches, images only for reference.

UPM1E122MHD

Name: UPM1E122MHD
Brand: Nichicon
SKU: 1172847
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	UPM1E122MHD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 1200UF 20% 25V RADIAL / 1200 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPM
Package	Bulk
Product Status	Not For New Designs
Capacitance	1200 µF
Tolerance	±20%
Voltage - Rated	25 V
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	1.55 A @ 120 Hz
Ripple Current @ High Frequency	1.76 A @ 10 kHz
Impedance	32 mOhms
Lead Spacing	0.197" (5.00mm)
Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.063" (27.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Standard Package	800
Win Source Part Number	1172847-UPM1E122MHD
Ultra Librarian 3D Model	Ultra Librarian UPM1E122MHD CAD Model

Alternative Products

Description

The Nichicon UPM1E122MHD is an aluminum electrolytic capacitor with a capacitance of 1200 μF and a voltage rating of 25 V.

Tolerance: ±20%
Impedance: 32 mOhms
Application: General purpose
Lifetime: 5000 hours @ 105°C
Standard Package: 800 capacitors
Series: UPM
New Designs: Not for new designs
Ripple Current: 1.55 A @ 120 Hz and 1.76 A @ 10 kHz
