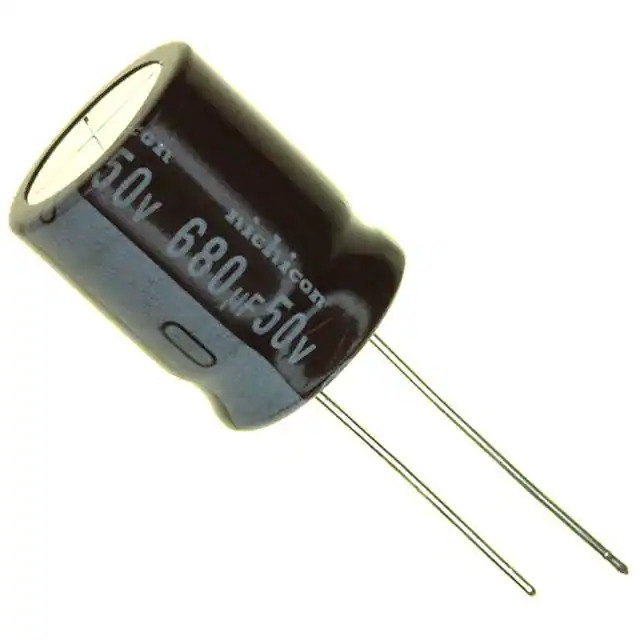

Same model may have multiple batches, images only for reference.

UPW1H681MHD6

Name: UPW1H681MHD6
Brand: Nichicon
SKU: 1357928
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UPW1H681MHD6
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 680UF 20% 50V RADIAL / 680 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C
Datasheet	UPW1H681MHD6 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPW
Package	Bulk
Product Status	Not For New Designs
Capacitance	680 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	8000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.38 A @ 120 Hz
Ripple Current @ High Frequency	1.84 A @ 100 kHz
Impedance	48 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	0.787" (20.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1357928-UPW1H681MHD6
Ultra Librarian 3D Model	Ultra Librarian UPW1H681MHD6 CAD Model

Alternative Products

Description

The 1357928-UPW1H681MHD6 is an aluminum electrolytic capacitor manufactured by Nichicon.

Series: UPW
Application: General Purpose
Capacitance: 680 µF
Voltage - Rated: 50 V
Tolerance: ±20%
Temperature Range: -55°C to 105°C
Mounting Type: Through Hole
Package: Radial, Can
Lead Spacing: 0.295" (7.50mm)
Size: 0.630" Dia (16.00mm)
Height: 0.787" (20.00mm)
Ripple Current - Low Frequency: 1.38 A @ 120 Hz
Ripple Current - High Frequency: 1.84 A @ 100 kHz
Lifetime @ Temp.: 8000 Hours @ 105°C
REACH: Unaffected
ECCN: EAR99
Polarization: Polar
Impedance: 48 mOhms
