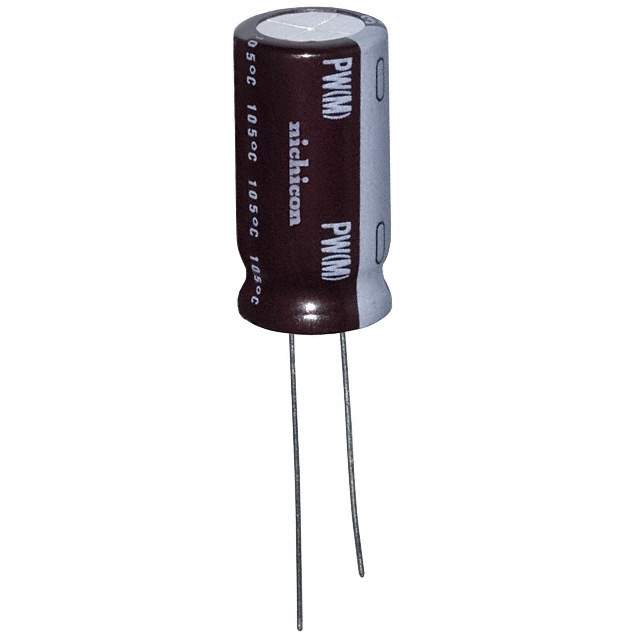

Same model may have multiple batches, images only for reference.

UPW1J471MHD

Name: UPW1J471MHD
Brand: Nichicon
SKU: 1006124
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UPW1J471MHD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 470UF 20% 63V RADIAL / 470 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPW
Package	Bulk
Product Status	Not For New Designs
Capacitance	470 µF
Tolerance	±20%
Voltage - Rated	63 V
Lifetime @ Temp.	7000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	1.29 A @ 120 Hz
Ripple Current @ High Frequency	1.72 A @ 100 kHz
Impedance	70 mOhms
Lead Spacing	0.197" (5.00mm)
Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.984" (25.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	493-1948
Standard Package	800
Win Source Part Number	1006124-UPW1J471MHD
Ultra Librarian 3D Model	Ultra Librarian UPW1J471MHD CAD Model

Alternative Products

Description

The Nichicon UPW1J471MHD capacitor is an aluminum electrolytic capacitor with a capacitance of 470 microfarads and a rated voltage of 63 volts.

Capacitance: 470 microfarads
Rated Voltage: 63 volts
Tolerance: ±20 percent
Impedance: 70 milliohms
Mounting Type: Through-Hole
Package: Radial Can
Height: 0.984 inches
Ripple Current: 1.29 A @ 120 Hz and 1.72 A @ 100 kHz
Popularity: Low
Supply and Demand Status: Limited
Manufacturer: Nichicon
