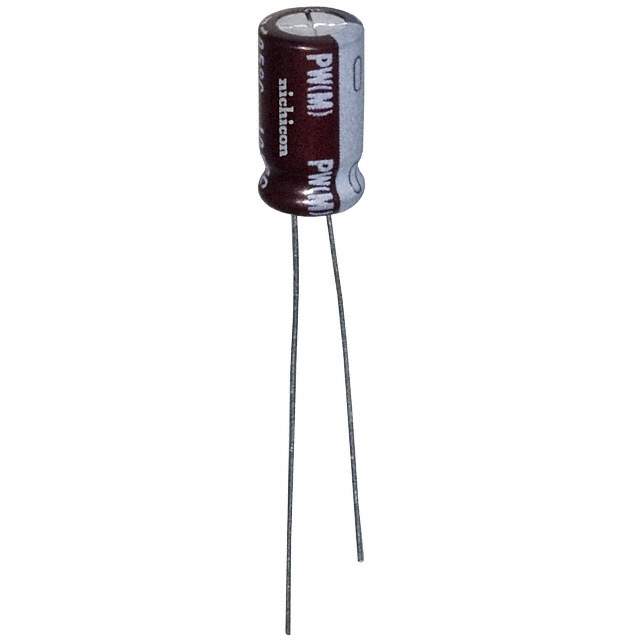

UPW1V560MED Real Image
Same model may have multiple batches, images only for reference.

UPW1V560MED

Part No UPW1V560MED
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 56UF 20% 35V RADIAL / 56 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Datasheet
UPW1V560MED Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPW
Package Bulk
Product Status Obsolete
Capacitance 56 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 87 mA @ 120 Hz
Ripple Current @ High Frequency 290 mA @ 100 kHz
Impedance 250 mOhms
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.433" (11.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 4,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1341296-UPW1V560MED
Ultra Librarian 3D Model Ultra Librarian UPW1V560MED CAD Model

Description

The Nichicon UPW1V560MED is an aluminum electrolytic capacitor with a capacitance of 56 µF and a voltage rating of 35 V.

  • Tolerance: ±20%
  • Impedance: 250 mOhms
  • Series: UPW
  • Package: radial, can
  • Height when seated: 0.433" (11.00mm)
  • Diameter: 0.248" (6.30mm)
  • Polarization: polarized
  • Ripple Current: 87 mA @ 120 Hz (low frequency) and 290 mA @ 100 kHz (high frequency)
  • Status: This product is now obsolete and is not recommended for new designs.
