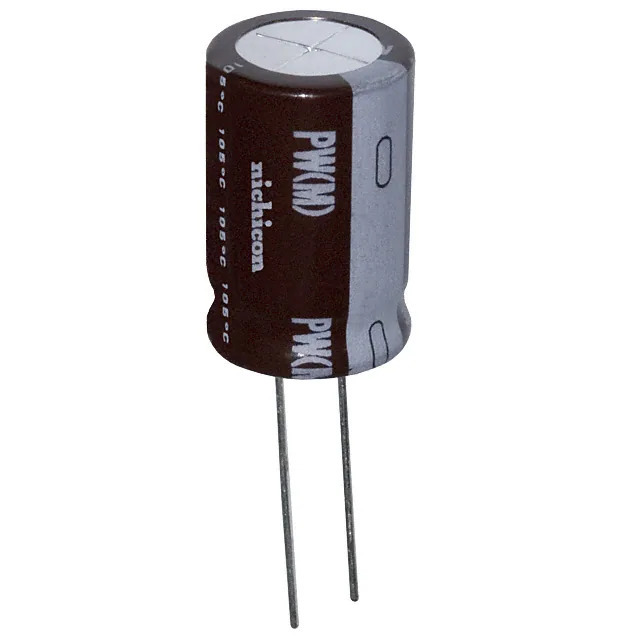

Same model may have multiple batches, images only for reference.

UPW2A331MHD

Name: UPW2A331MHD
Brand: Nichicon
SKU: 1357921
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UPW2A331MHD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 330UF 20% 100V RADIAL / 330 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C
Datasheet	UPW2A331MHD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPW
Package	Bulk
Product Status	Not For New Designs
Capacitance	330 µF
Tolerance	±20%
Voltage - Rated	100 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	8000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	702 mA @ 120 Hz
Ripple Current @ High Frequency	1.08 A @ 100 kHz
Impedance	90 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	0.984" (25.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1357921-UPW2A331MHD
Ultra Librarian 3D Model	Ultra Librarian UPW2A331MHD CAD Model

Alternative Products

Description

The UPW2A331MHD is a radial, can-type aluminum electrolytic capacitor from Nichicon's UPW series.

Capacitance: 330 µF
Tolerance: ±20%
Voltage: 100 V
Application: General-Purpose
Ripple Current (Low Frequency): 702 mA @ 120 Hz
Ripple Current (High Frequency): 1.08 A @ 100 kHz
Size: 0.630" diameter (16.00mm)
Height: 0.984" (25.00mm)
Mounting: Through-Hole
Lifetime: 8000 hours @ 105°C
REACH: Unaffected
ECCN: EAR99
Polarization: Polar
Impedance: 90 mOhms
