Same model may have multiple batches, images only for reference.

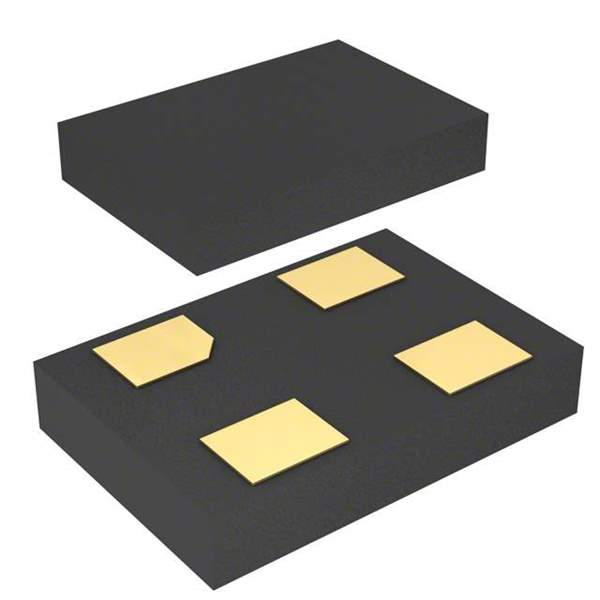

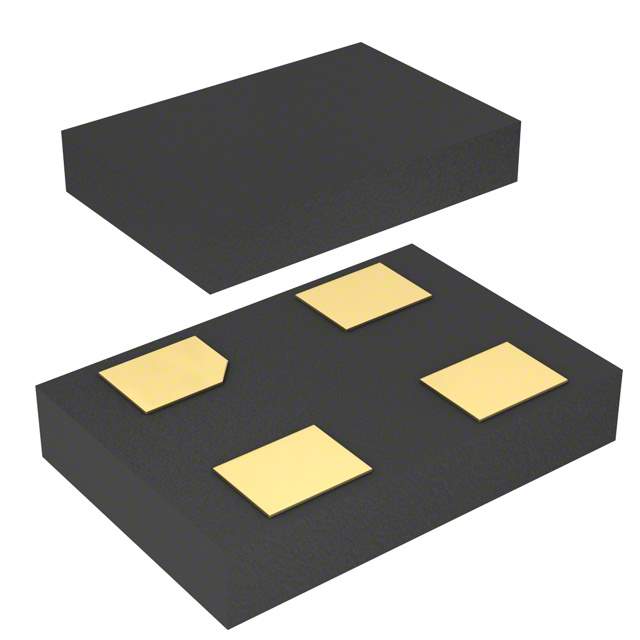

501ACA10M0000BAG Real Image
Same model may have multiple batches, images only for reference.

501ACA10M0000BAG

Part No 501ACA10M0000BAG
Manufacturer Silicon Labs
Catalog Oscillators
Description OSC CMEMS 10.0000MHZ LVCMOS  /  10 MHz CMEMS® LVCMOS Oscillator 1.7V ~ 3.6V Enable/Disable 4-SMD, No Lead
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Silicon Labs
Series Si501
Package Strip
Product Status Obsolete
Base Resonator MEMS
Type CMEMS®
Frequency 10 MHz
Function Enable/Disable
Output LVCMOS
Voltage - Supply 1.7V ~ 3.6V
Frequency Stability ±20ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 2.5mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.157" L x 0.126" W (4.00mm x 3.20mm)
Height - Seated (Max) 0.035" (0.90mm)
Current - Supply (Disable) (Max) 2.5mA
MSL Level 2 (1 Year)
ECCN EAR99
HTSUS 8542.39.0001
Other Names 336-2875
Standard Package 50
Win Source Part Number 1027672-501ACA10M0000BAG
Ultra Librarian 3D Model Ultra Librarian 501ACA10M0000BAG CAD Model

Description

The Silicon Labs Si501 is a type of CMEMS crystal oscillator with a frequency of 10 MHz.

  • Frequency: 10 MHz
  • Function: Enable/Disable
  • Output: LVCMOS
  • Package: Strip
  • Height: 0.035" (0.90mm)
  • Frequency Stability: ±20ppm
  • Current Supply: 2.5mA (max)
  • Voltage Supply: 1.7V to 3.6V
  • Operating Temperature: -40°C to 85°C
  • Package/Case: 4-SMD, no lead
  • Absolute Pull Range (APR): -.
