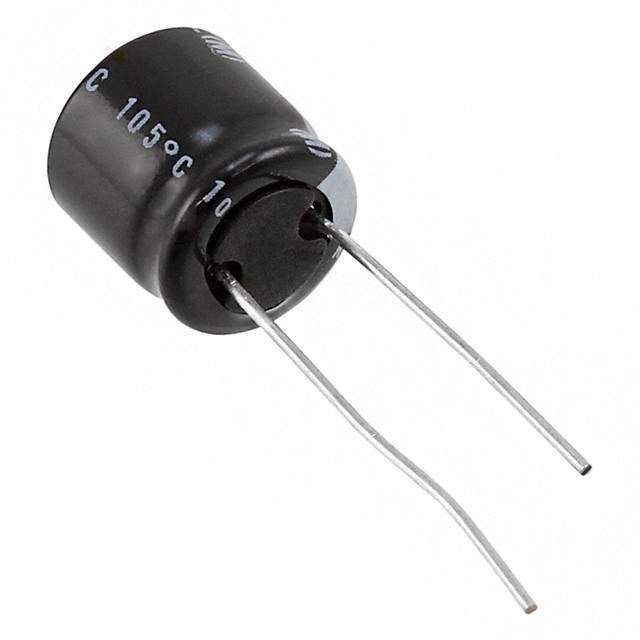

Same model may have multiple batches, images only for reference.

URZ1H101MPD

Get a Quote

Part No	URZ1H101MPD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 50V RADIAL / 100 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Datasheet	URZ1H101MPD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	URZ
Package	Bulk
Product Status	Obsolete
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	50 V
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	170 mA @ 120 Hz
Ripple Current @ High Frequency	255 mA @ 10 kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.413" (10.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	200
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1339664-URZ1H101MPD
Ultra Librarian 3D Model	Ultra Librarian URZ1H101MPD CAD Model

Alternative Products

Description

The URZ1H101MPD is an aluminum electrolytic capacitor that belongs to the URZ series manufactured by Nichicon.

Capacitance: 100 µF
Voltage Rating: 50 V
Tolerance: ±20%
Ripple Current (Low Frequency): 170 mA @ 120 Hz
Ripple Current (High Frequency): 255 mA @ 10 kHz
Package: Radial, can
Size / Dimension: 0.394" Dia (10.00mm)
Height: 0.413" (10.50mm)
Lifetime: 1000 Hrs @ 105°C
Polarization: Polarized
ECCN: EAR99
REACH: Unaffected
HTSUS Code: 8532.22.0020
Status: Obsolete
