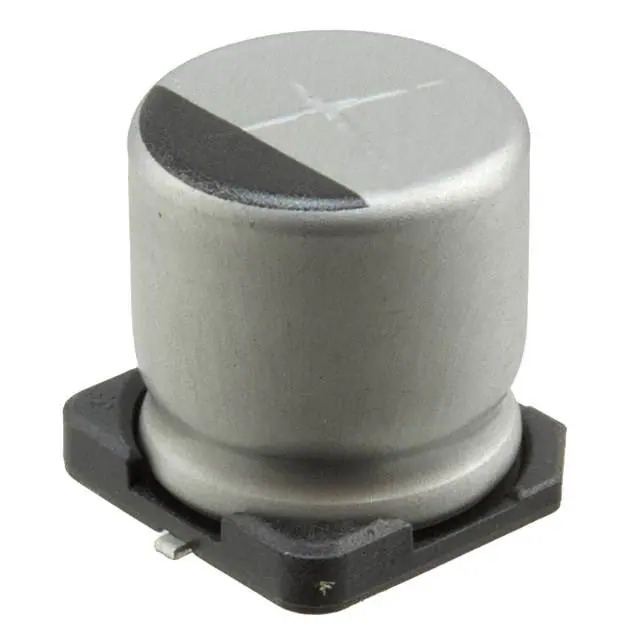

UUR1H101MNL1GS Nichicon
Same model may have multiple batches, images only for reference.

UUR1H101MNL1GS

Part No UUR1H101MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 50V SMD / 100 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Datasheet
UUR1H101MNL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UUR
Package Tape & Reel
Product Status Last Time Buy
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization -
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 195 mA @ 120 Hz
Ripple Current @ High Frequency 253.5 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360390-UUR1H101MNL1GS
Ultra Librarian 3D Model Ultra Librarian UUR1H101MNL1GS CAD Model

Description

The UUR1H101MNL1GS is an aluminum electrolytic capacitor from Nichicon's UUR series.

  • Series: UUR
  • Mounting Type: Surface Mount
  • Capacitance: 100 μF
  • Voltage Rating: 50 V
  • Application: General-Purpose
  • Temperature Range: -40°C to 85°C
  • Ripple Current (Low Frequency): 195 mA @ 120 Hz
  • Ripple Current (High Frequency): 253.5 mA @ 10 kHz
  • Size: 10.00mm diameter
  • Height: 10.50mm
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • Lifetime: 2000 hours @ a temperature of 85°C
  • REACH: Compliant
  • ECCN: EAR99
  • Polarization: Polarized
  • Polarization Direction: Not Specified
