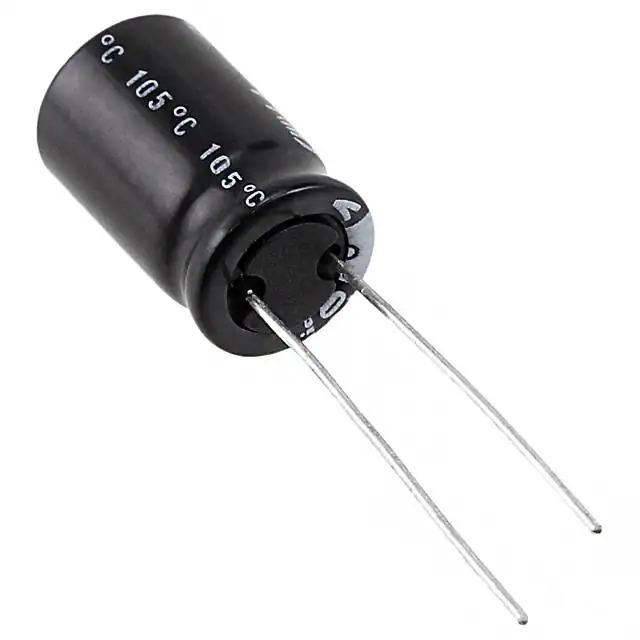

Same model may have multiple batches, images only for reference.
UVY1A222MPD Nichicon
Same model may have multiple batches, images only for reference.

UVY1A222MPD

Part No UVY1A222MPD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 2200UF 20% 10V RADIAL / 2200 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Datasheet
UVY1A222MPD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UVY
Package Bulk
Product Status Not For New Designs
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 705 mA @ 120 Hz
Ripple Current @ High Frequency 810.75 mA @ 10 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
Base Product Number UVY1A
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358043-UVY1A222MPD
Ultra Librarian 3D Model Ultra Librarian UVY1A222MPD CAD Model

Description

The UVY1A222MPD is an aluminum electrolytic capacitor from Nichicon's UVY series manufactured by Nichicon.

  • Capacitance: 2200μF
  • Tolerance: ±20%
  • Rated Voltage: 10V
  • Maximum ESR: 430 mOhms
  • Application: Designed for general-purpose applications
  • Temperature Range: -55°C to 105°C
  • Lifetime: 2000 hours @ 105°C
  • Mounting: Through-hole component that can be mounted easily
  • Diameter: 10.00mm
  • Height: 17.50mm
  • Size: Providing a compact size
  • Status: Not for new designs
  • Packaging: Available in bulk packaging
  • REACH: Unaffected by REACH regulations
  • ECCN: EAR99
  • Polarization: Polarized
  • Lead Spacing: 5.00mm
