Same model may have multiple batches, images only for reference.

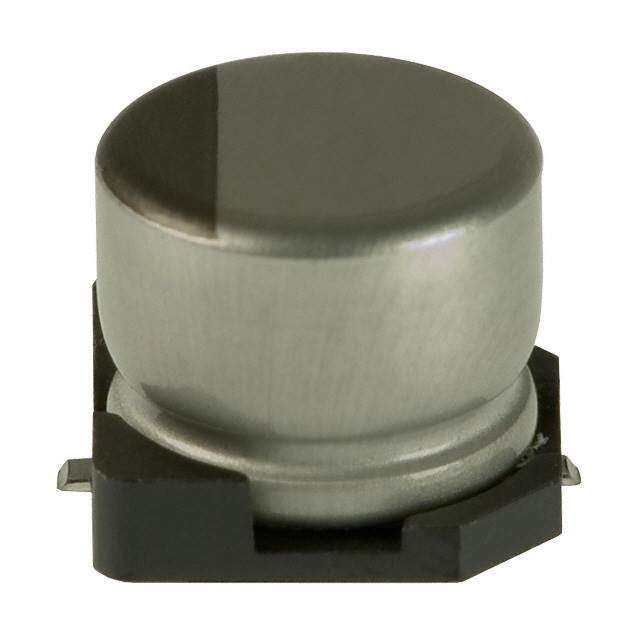

UWX1C470MCR1GB Real Image
Same model may have multiple batches, images only for reference.

UWX1C470MCR1GB

Part No UWX1C470MCR1GB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 16V SMD
Datasheet
UWX1C470MCR1GB Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Nichicon
Packaging Reel - TR
Status Obsolete(EOL)
Capacitance 47μF
Tolerance ±20%
Voltage Rating 16V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C to 85°C
Polarization Polar
Applications General Purpose
Ripple Current - Low Frequency 58mA @ 120Hz
Ripple Current - High Frequency 87mA @ 10kHz
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Dimension Radial, Can - SMD
Win Source Part Number 043530-UWX1C470MCR1GB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian UWX1C470MCR1GB CAD Model

Description

The UWX1C470MCR1GB is a radial, can - SMD electronic component manufactured by Nichicon.

  • Voltage Rating: 16V
  • Capacitance: 47μF
  • Tolerance: ±20%
  • Low-Frequency Ripple Current: 58mA @ 120Hz
  • High-Frequency Ripple Current: 87mA @ 10kHz
  • Status: Obsolete (EOL)
  • Applications: General-Purpose Electronic Applications
