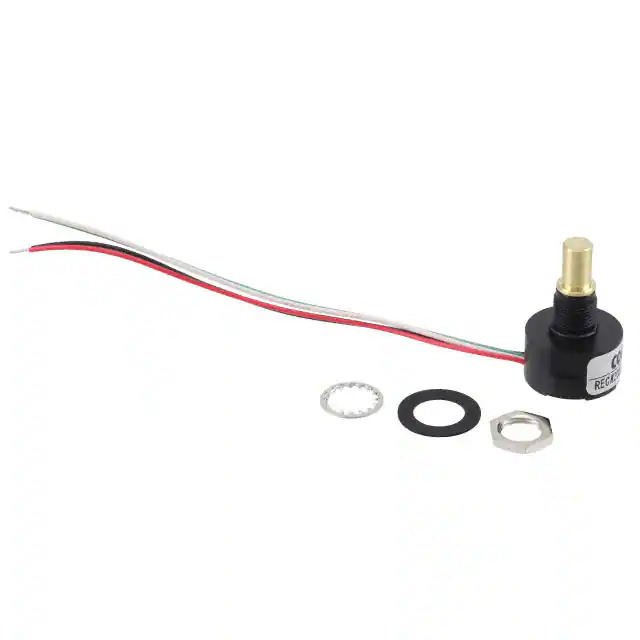

RECW20D-25-201-1 Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

RECW20D-25-201-1

Part No RECW20D-25-201-1
Manufacturer Nidec Copal Electronics
Catalog Encoders
Description ROTARY ENCODER OPTICAL 25PPR
Datasheet
RECW20D-25-201-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Encoders - Industrial
Mfr Nidec Components Corporation
Series RE
Package Tray
Product Status Active
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 25
Voltage - Supply 5V
Actuator Type Shaft
Detent Yes
Built in Switch No
Mounting Type Panel Mount
Orientation User Selectable
Termination Style Wire Leads
Rotational Life (Cycles Min) -
Base Product Number RECW20D
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.4500
Win Source Part Number 1376121-RECW20D-25-201-1
Ultra Librarian 3D Model Ultra Librarian RECW20D-25-201-1 CAD Model

Description

The RECW20D-25-201-1 is an industrial encoder from Nidec Components Corporation.

  • Voltage Supply: 5V
  • Output Type: Quadrature (Incremental)
  • Orientation: User Selectable
  • Actuator Type: Shaft
  • Termination Style: Wire Leads
  • Built-in Switch: No
  • Type: Optical Encoder
  • Pulses per Revolution: 25
  • Detent: Yes
