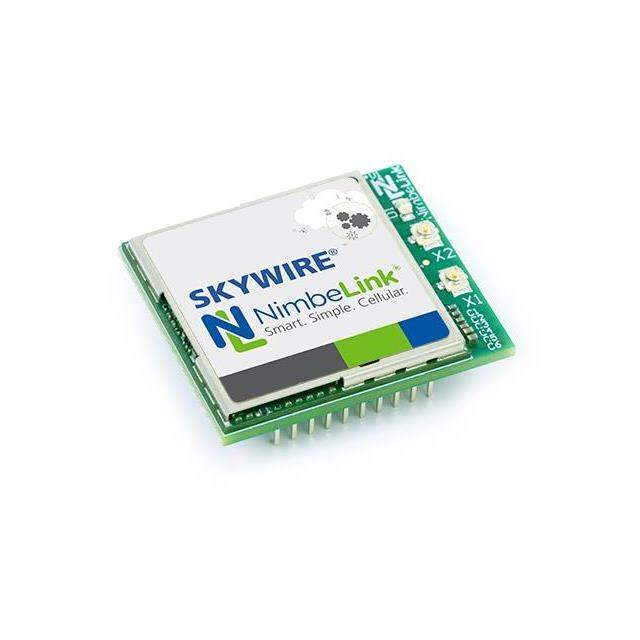

NL-SW-LTE-TC4NAG Real Image
Same model may have multiple batches, images only for reference.

NL-SW-LTE-TC4NAG

Part No NL-SW-LTE-TC4NAG
Manufacturer NimbeLink, LLC
Catalog RF Transceiver Modules
Description EMBEDDED CELLULAR MODEM / Cellular 4G LTE CAT-4 (AT&T/Verzion) Transceiver Module 600MHz, 700MHz, 850MHz, 1.7GHz, 1.9GHz Through Hole
Datasheet
NL-SW-LTE-TC4NAG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr NimbeLink, LLC
Package Tube
RF Family/Standard Cellular
Protocol 4G LTE CAT-4 (AT&T/Verzion)
Frequency 600MHz, 700MHz, 850MHz, 1.7GHz, 1.9GHz
Serial Interfaces UART, USB
Voltage - Supply 1.65V ~ 5.5V
Mounting Type Through Hole
Temperature Range - Operating -40°C ~ 85°C
Package / Case 20-DIP Module
Base Product Number NL-SW-LTE
Standard Package 14
MSL Level 1 (Unlimited)
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 1349942-NL-SW-LTE-TC4NAG
Ultra Librarian 3D Model Ultra Librarian NL-SW-LTE-TC4NAG CAD Model

Description

The NL-SW-LTE-TC4NAG is a 4G LTE CAT-4 (AT&T/Verzion) RF transceiver module that operates within a frequency range of 600MHz to 1.9GHz. It is manufactured by NimbeLink, LLC.

  • Frequency Range: 600MHz to 1.9GHz
  • Package: 20-DIP module
  • Mounting: Through-hole
  • Voltage Supply Range: 1.65V to 5.5V
  • Operating Temperature Range: -40°C to 85°C
  • Application: Cellular
  • Serial Interfaces: UART and USB
