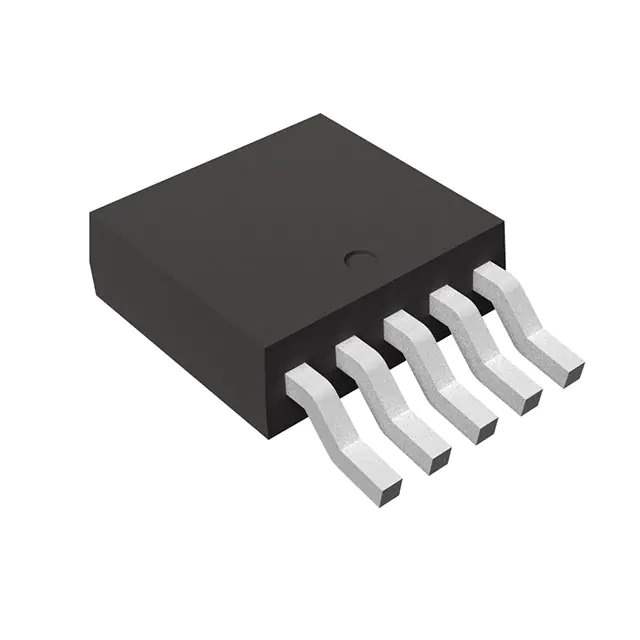

R1171J331D-T1-F Real Image
Same model may have multiple batches, images only for reference.

R1171J331D-T1-F

Part No R1171J331D-T1-F
Manufacturer Nisshinbo Micro Devices Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 3.3V 2A TO252-5-P1
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - Linear
Mfr Nisshinbo Micro Devices Inc.
Series R1171x
Package Tape & Reel
Product Status Active
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 6V
Voltage - Output (Min/Fixed) 3.3V
Voltage Dropout (Max) 0.18V @ 300mA
Current - Output 2A
Current - Quiescent (Iq) 320 µA
PSRR 50dB (1kHz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case TO-252-6, DPak (5 Leads + Tab)
Supplier Device Package TO-252-5-P2
Base Product Number R1171
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 807692-R1171J331D-T1-F
Ultra Librarian 3D Model Ultra Librarian R1171J331D-T1-F CAD Model

Description

The R1171J331D-T1-F is a linear voltage regulator manufactured by Nisshinbo Micro Devices Inc.

  • Series: R1171x
  • Category: Integrated Circuits - Power Management - Voltage Regulators - Linear
  • Package Type: Tape and Reel
  • Quantity per Reel: 3,000 pieces
  • Regulator Count: Single
  • Output Type: Fixed
  • Control Feature: Enable
  • Input Voltage Range: 0V to 6V
  • Output Voltage: 3.3V
  • Mounting Type: Surface Mount
  • Package: TO-252-6, DPak
  • Operating Temperature: -40°C to 85°C
  • Protection: Over Current, Over Temperature
  • Quiescent Current: 320μA
  • PSRR: 50dB
