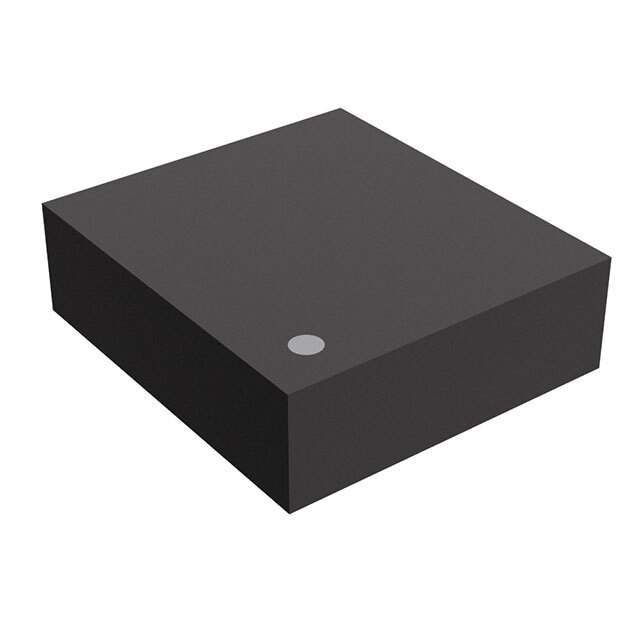

R5326K010B-TR Real Image
Same model may have multiple batches, images only for reference.

R5326K010B-TR

Part No R5326K010B-TR
Manufacturer Nisshinbo Micro Devices Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 1V 150MA DFN1820-6
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - Linear
Mfr Nisshinbo Micro Devices Inc.
Series R5326x
Package Tape & Reel
Product Status Active
Output Configuration Positive
Output Type Fixed
Number of Regulators 2
Voltage - Input (Max) 6V
Voltage - Output (Min/Fixed) 1V
Voltage Dropout (Max) 0.69V @ 150mA, 0.69V @ 150mA
Current - Output 150mA, 150mA
Current - Quiescent (Iq) 105 µA
PSRR 70dB ~ 60dB (1kHz ~ 10kHz)
Control Features Enable
Protection Features Over Current
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 6-UFDFN Exposed Pad
Supplier Device Package DFN(PL)1820-6
Base Product Number R5326
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 289037-R5326K010B-TR
Ultra Librarian 3D Model Ultra Librarian R5326K010B-TR CAD Model

Description

The R5326K010B-TR is a linear voltage regulator IC from Nisshinbo Micro Devices Inc.

  • Series: part of the R5326x series
  • Application: power management applications
  • Regulators: two regulators with a maximum output current of 150mA each
  • Output Type: fixed output type
  • Features: enable control feature
  • Input Voltage: up to 6V
  • Minimum/Fixed Output Voltage: 1V
  • Package: 6-UFDFN Exposed Pad package
  • Mounting: surface mountable
  • Operating Temperature: -40°C to 85°C
  • Benefit: reliable performance and protection features, the R5326K010B-TR is suitable for a wide range of power management applications.
