Same model may have multiple batches, images only for reference.

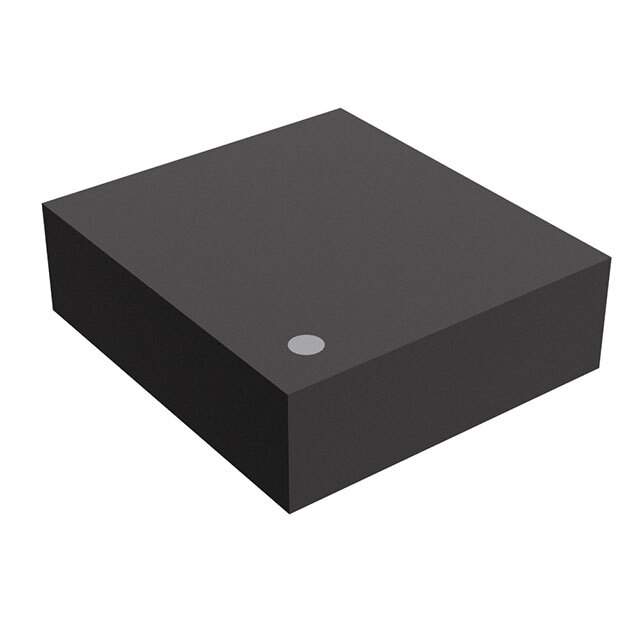

R5326K024B-TR Real Image
Same model may have multiple batches, images only for reference.

R5326K024B-TR

Part No R5326K024B-TR
Manufacturer Nisshinbo Micro Devices Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LIN 2.4V 150MA DFN1820-6 / Linear Voltage Regulator IC Positive Fixed 2 Output 150mA, 150mA DFN(PLP)1820-6
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Voltage Regulators - Linear
Mfr Nisshinbo Micro Devices Inc.
Series R5326x
Package Tape & Reel (TR)
Output Configuration Positive
Output Type Fixed
Number of Regulators 2
Voltage - Input (Max) 6V
Voltage - Output (Min/Fixed) 2.4V
Voltage Dropout (Max) 0.37V @ 150mA, 0.37V @ 150mA
Current - Output 150mA, 150mA
Current - Quiescent (Iq) 105 µA
Control Features Enable
Protection Features Over Current
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 6-UFDFN Exposed Pad
Supplier Device Package DFN(PLP)1820-6
Base Product Number R5326
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 5,000
Win Source Part Number 992876-R5326K024B-TR
Ultra Librarian 3D Model Ultra Librarian R5326K024B-TR CAD Model

Description

This integrated circuit by Nisshinbo Micro Devices Inc. is a highly efficient and reliable component for voltage regulation.

  • Output Configuration: fixed
  • Maximum Input Voltage: 6V
  • Output Voltage: 2.4V
  • Current Output: 150mA
  • Quiescent Current: 105 µA
  • Package: tape & reel (TR)
  • Standard Package: 5,000
  • Voltage Dropout: 0.37V @ 150mA
  • Features: over-current protection
  • Operating Temperature Range: -40°C to 85°C
