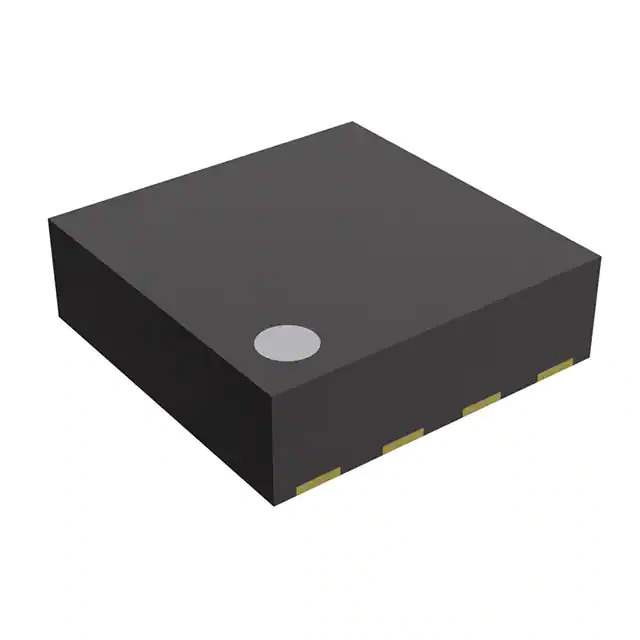

RP150K017B-TR Real Image
Same model may have multiple batches, images only for reference.

RP150K017B-TR

Part No RP150K017B-TR
Manufacturer Nisshinbo Micro Devices Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LIN 1.7V 300MA DFN2020-8
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - Linear
Mfr Nisshinbo Micro Devices Inc.
Series RP150K
Package Tape & Reel
Product Status Active
Output Configuration Positive
Output Type Fixed
Number of Regulators 2
Voltage - Input (Max) 5.25V
Voltage - Output (Min/Fixed) 1.7V
Voltage Dropout (Max) 0.8V @ 300mA
Current - Output 300mA, 300mA
Current - Quiescent (Iq) 33 µA
Control Features Enable
Protection Features Over Current
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 8-UFDFN Exposed Pad
Supplier Device Package DFN(PL)2020-8
Base Product Number RP150
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 298400-RP150K017B-TR
Ultra Librarian 3D Model Ultra Librarian RP150K017B-TR CAD Model

Description

The RP150K series is a family of linear voltage regulators designed for power management applications. The RP150K017B-TR is a fixed output voltage regulator manufactured by Nisshinbo Micro Devices Inc. and is an active product in the RP150K series.

  • Voltage Output: 1.7V
  • Maximum Output Current: 300mA
  • Number of Regulators: 2
  • Input Voltage Range: 0V to 5.25V
  • Package: Surface Mount, 8-UFDFN exposed pad
  • Over Current Protection: Yes
  • Quiescent Current: 33μA
  • Operating Temperature Range: Wide
