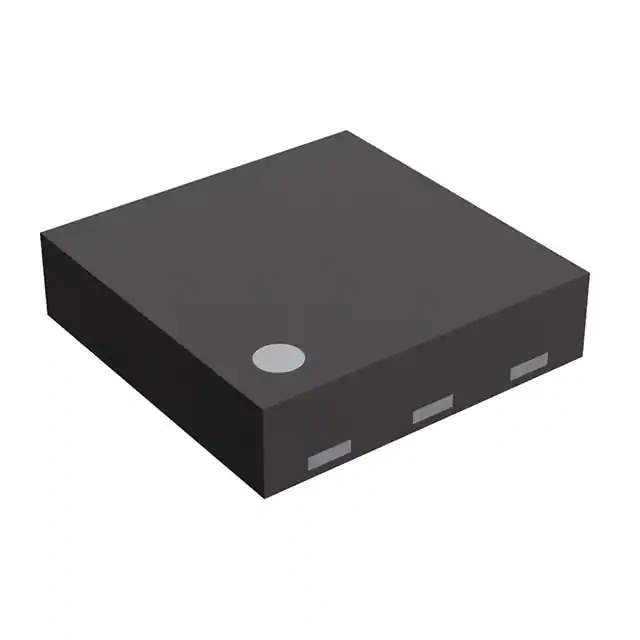

RP504L121D-TR

Name: RP504L121D-TR
Brand: Nisshinbo Micro Devices Inc.
SKU: 298466
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	RP504L121D-TR
Manufacturer	Nisshinbo Micro Devices Inc.
Catalog	PMIC - Voltage Regulators - DC DC Switching Regulators
Description	600MA PWM/VFM STEP-DOWN DCDC CON
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - DC DC Switching Regulators
Mfr	Nisshinbo Micro Devices Inc.
Series	RP504x
Package	Tape & Reel
Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Fixed
Number of Outputs	1
Voltage - Input (Min)	2.3V
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.2V
Current - Output	600mA
Frequency - Switching	2.25MHz
Synchronous Rectifier	Yes
Temperature Range - Operating	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	6-XFDFN Exposed Pad
Supplier Device Package	DFN1616-6
Base Product Number	RP504
Standard Package	5,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	298466-RP504L121D-TR
Ultra Librarian 3D Model	Ultra Librarian RP504L121D-TR CAD Model

Alternative Products

Description

The RP504L121D-TR is a DC-DC switching regulator manufactured by Nisshinbo Micro Devices Inc.

Series: RP504x
Category: Integrated Circuits - Power Management - Voltage Regulators - DC DC Switching Regulators
Package: Tape and Reel
Standard Package: 5,000 pieces
Regulator Type: Step-Down
Output Type: Fixed
Input Voltage Range: 2.3V to 5.5V
Output Voltage: 1.2V
Switching Frequency: 2.25MHz
Features: Synchronous Rectifier
Mounting: Surface Mountable
Package: 6-XFDFN Exposed Pad
Operating Temperature: -40°C to 85°C
