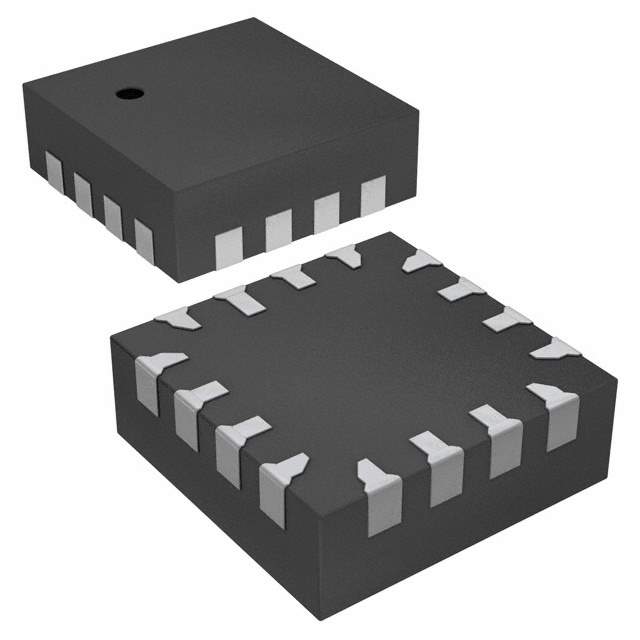

NJG1524APC1-TE1 Real Image
Same model may have multiple batches, images only for reference.

NJG1524APC1-TE1

Part No NJG1524APC1-TE1
Manufacturer NJR Corporation/NJRC
Catalog RF Switches
Description IC MMIC SWITCH DPDT FFP16
Datasheet
NJG1524APC1-TE1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer NJR Corporation/NJRC
Packaging Reel - TR
Status Obsolete(EOL)
Frequency - Lower 50MHz
Frequency - Upper 3GHz
Isolation @ Frequency 27dB @ 2GHz
Insertion Loss @ Frequency 0.5dB @ 2GHz
Topology Reflective
Circuit DPDT
P1dB 23dBm (typ) IP1dB
Impedance 50 Ohm
Temperature Range - Operating -40°C to 85°C
RF Type GSM
Case / Package 16-FFP-C1 (2.5x2.5)
Win Source Part Number 1083020-NJG1524APC1-TE1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian NJG1524APC1-TE1 CAD Model

Description

The NJG1524APC1-TE1 is a DPDT switch that is manufactured by NJR Corporation/NJRC.

  • Categories: RF/IF and RFID
