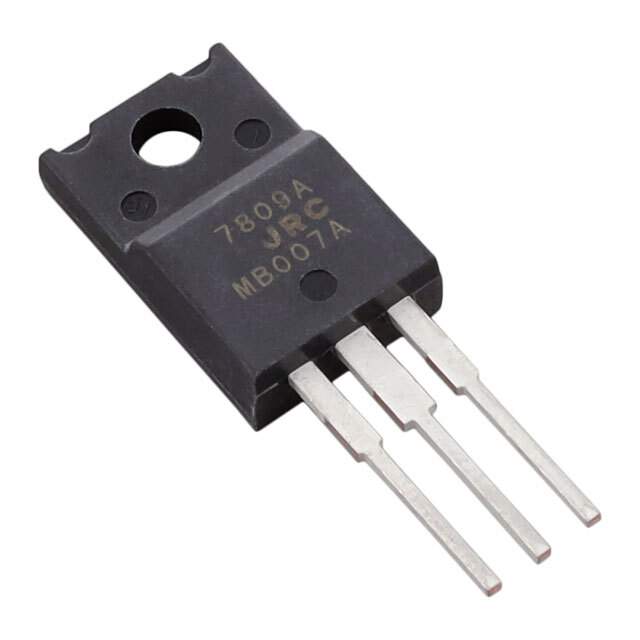

NJM7809FA Real Image1 NJM7809FA Real Image2
Same model may have multiple batches, images only for reference.
NJM7809FA Real Image1 NJM7809FA Real Image2
NJM7809FA Real Image1 NJM7809FA Real Image2
Same model may have multiple batches, images only for reference.

NJM7809FA

Part No NJM7809FA
Manufacturer NJR Corporation/NJRC
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 9V 1.5A TO220F
Datasheet
NJM7809FA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NJR Corporation/NJRC
Packaging Bulk
Status Active
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 35V
Nominal Output Voltage (Min/Fixed) 9V
Output Current 1.5A
Operating Supply Current 6mA
PSRR 72dB (120Hz)
Control Protection Features Over Temperature, Short Circuit
Temperature Range - Operating -40°C to 85°C
Regulator Topology Positive Fixed
Output Voltage 9V
Mounting Through Hole
Case / Package TO-220F
Win Source Part Number 060339-NJM7809FA
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian NJM7809FA CAD Model

Description

The NJM7809FA is a positive fixed regulator with a fixed output voltage of 9V and an output current of 1.5A.

  • Regulator Topology: positive fixed
  • Regulator Count: one regulator
  • Temperature Range: -40°C to 85°C
  • Case/Package: TO-220F
  • Maximum Input Voltage: 35V
  • Nominal Output Voltage: 9V
  • PSRR: 72dB (120Hz)
  • Control Protection Features: over temperature and short circuit
  • Common Usage: integrated circuits
  • Supply and Demand Status: sufficient
