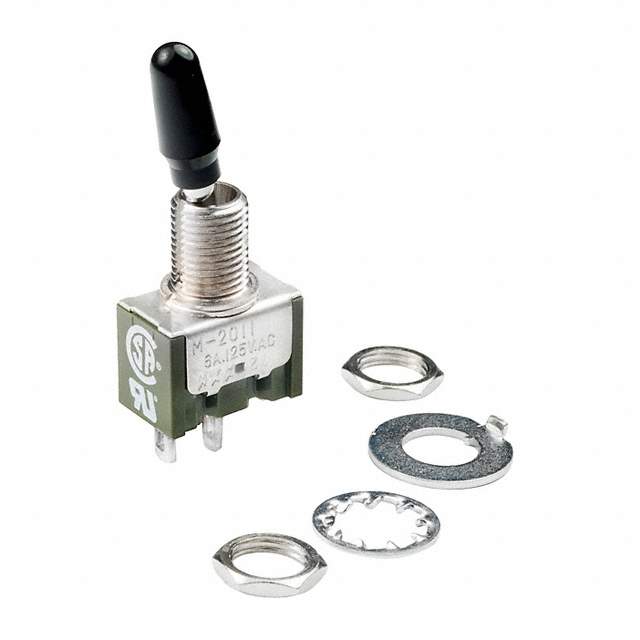

M2011SS1W01/UC-BA Real Image
Same model may have multiple batches, images only for reference.

M2011SS1W01/UC-BA

Part No M2011SS1W01/UC-BA
Manufacturer NKK Switches
Catalog Toggle Switches
Description SWITCH TOGGLE SPST 6A 125V / Toggle Switch SPST Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Toggle Switches
Mfr NKK Switches
Series M
Package Bulk
Mounting Type Panel Mount
Circuit SPST
Switch Function On-Off
Current Rating (Amps) 6A (AC), 4A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Standard Round with Cap
Actuator Length 13.50mm
Illumination Non-Illuminated
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 6.50mm Dia
Bushing Thread 1/4-40
Features Black Cap
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 25,000 Cycles
Base Product Number M2011SS
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names -M2011SS1W01/UC-BA,360-2826,M2011SS1W01UCBA,M2011SS1W01/UC-BA-ND
Standard Package 1
Win Source Part Number 1214583-M2011SS1W01/UC-BA
Ultra Librarian 3D Model Ultra Librarian M2011SS1W01/UC-BA CAD Model

Description

The NKK Switches M2011SS1W01/UC-BA is a toggle switch that is part of the M series.

  • Actuator Type: Standard round with cap
  • Actuator Material: Brass, chrome plated
  • Circuit: Single pole, single throw (SPST)
  • Function: On-off
  • Panel Cutout Dimension: 6.5mm circular
  • Mount: Panel mount
  • Voltage Rating: 125V AC and 30V DC
  • Current Rating: 6A (AC) and 4A (DC)
  • Illumination Type: Non-illuminated
  • Bushing Thread: 1/4-40
  • Temperature Range: -30°C to 85°C
  • Electrical Life: 25,000 cycles
