S7AL NKK Switches
Same model may have multiple batches, images only for reference.

S7AL

Part No S7AL
Manufacturer NKK Switches
Catalog Toggle Switches

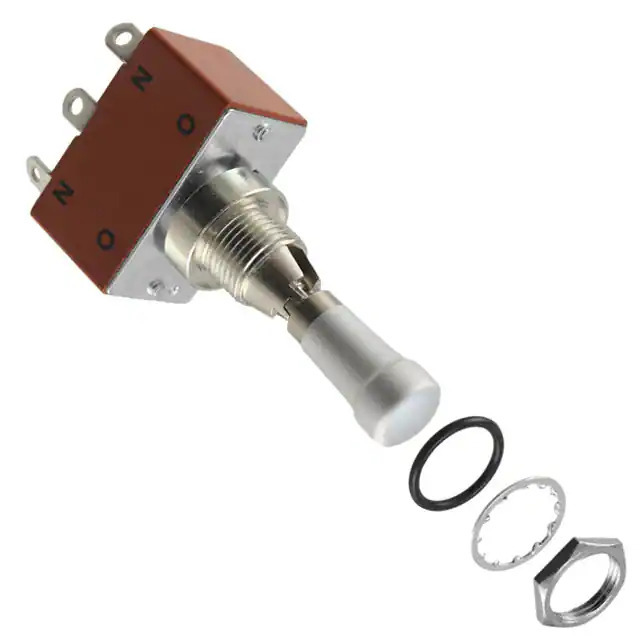

Description SWITCH TOGGLE DPDT 20A 125V / Toggle Switch DPDT Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr NKK Switches
Series S
Package Bulk
Product Status Active
Mounting Type Panel Mount
Circuit DPDT
Switch Function On-Off-On
Current Rating (Amps) 20A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Locking Lever
Actuator Length 23.50mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 12.50mm Dia
Bushing Thread M12 x 1
Ingress Protection IP67 - Dust Tight, Waterproof
Features -
Temperature Range - Operating -30°C ~ 70°C
Actuator Material Brass, Chrome Plated
Electrical Life 25,000 Cycles
Base Product Number -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376013-S7AL
Ultra Librarian 3D Model Ultra Librarian S7AL CAD Model

Description

The S7AL is a DPDT toggle switch from NKK Switches' S series.

  • Series: S
  • Mounting Type: Panel Mount
  • Current Rating (AC/DC): 20A (AC/DC)
  • Voltage Rating (AC): 125 V AC
  • Voltage Rating (DC): 30 V DC
  • Operating Temperature: -30°C to 70°C
  • Actuator Type: Locking Lever
  • Actuator Material: Brass, Chrome Plated
  • Panel Cutout Dimensions: Circular, 12.50mm diameter
  • Bushing Thread: M12 x 1
  • Ingress Protection: IP67
  • Electrical Life: 25,000 cycles
  • Illumination: Non-Illuminated
  • REACH Status: Unaffected
  • ECCN: EAR99
