Same model may have multiple batches, images only for reference.

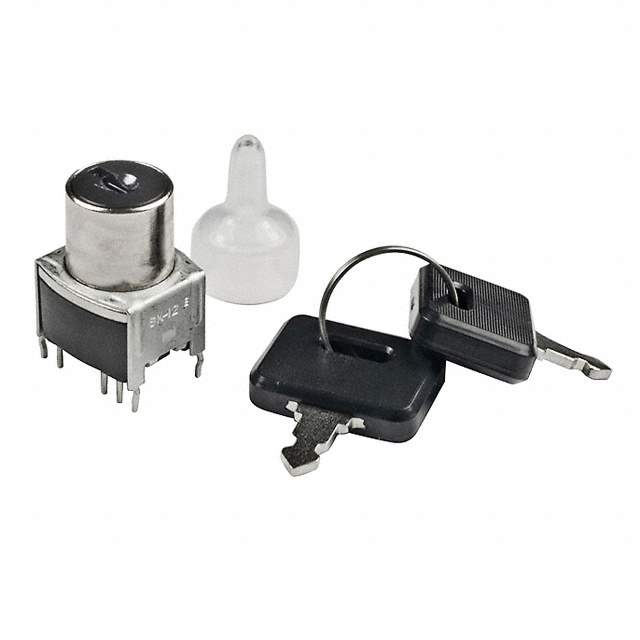

SK12BG13 Real Image
Same model may have multiple batches, images only for reference.

SK12BG13

Part No SK12BG13
Manufacturer NKK Switches
Catalog Keylock Switches
Description SWITCH KEYLK 2POS SPDT 0.4VA 28V / Keylock Switch 2 Position SPDT 0.4VA (AC/DC) 28 VAC 28 VDC Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Keylock Switches
Mfr NKK Switches
Series SK
Package Bulk
Circuit SPDT
Number of Positions 2
Switch Function On-On
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 28 V
Voltage Rating - DC 28 V
Actuator Type Flat Key
Key Removable Positions 1 only
Angle of Throw 90°
Contact Material Beryllium Copper
Contact Finish Gold
Mounting Type Through Hole
Termination Style PC Pin
Features Process Sealed
Temperature Range - Operating -25°C ~ 70°C
Mechanical Life 30,000 Cycles
Electrical Life 10,000 Cycles
Base Product Number SK12BG
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9020
Other Names SK12BG13-RO,360-1471INACTIVE,SK12BG13-RO-ND,360-1471-ND,-SK12BG13,-SK12BG13-RO,-SK12BG13-RO-ND,360-1471
Standard Package 1
Win Source Part Number 1226849-SK12BG13
Ultra Librarian 3D Model Ultra Librarian SK12BG13 CAD Model

Description

The SK12BG13 is a keylock switch manufactured by NKK Switches.

  • Series: SK
  • Positions: 2
  • Contact Timing: Non-Shorting (BBM)
  • Sealed: Process Sealed
  • Contact Finish: Gold
  • Voltage Rating: 28 V AC/DC
  • Current Rating: 0.4 VA
  • Mechanical Life: 30,000 cycles
  • Electrical Life: 10,000 cycles
  • Temperature Range: -25 to 70 degrees Celsius
  • REACH: Unaffected
