Same model may have multiple batches, images only for reference.

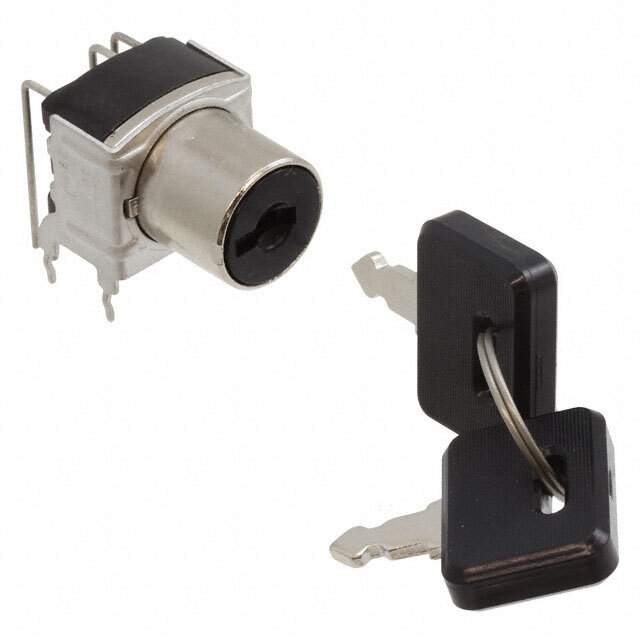

SK22BG30 Real Image
Same model may have multiple batches, images only for reference.

SK22BG30

Part No SK22BG30
Manufacturer NKK Switches
Catalog Keylock Switches
Description SWITCH KEYLK 2POS DPDT 0.4VA 28V / Keylock Switch 2 Position DPDT 0.4VA (AC/DC) 28 VAC 28 VDC Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Keylock Switches
Mfr NKK Switches
Series SK
Package Box
Circuit DPDT
Number of Positions 2
Switch Function On-On
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 28 V
Voltage Rating - DC 28 V
Actuator Type Flat Key
Key Removable Positions 1 only
Angle of Throw 90°
Contact Material Beryllium Copper
Contact Finish Gold
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Features Process Sealed
Temperature Range - Operating -25°C ~ 70°C
Mechanical Life 30,000 Cycles
Electrical Life 10,000 Cycles
Base Product Number SK22BG
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9020
Other Names SK22BG30-ND,360-3005
Standard Package 1
Win Source Part Number 978345-SK22BG30
Ultra Librarian 3D Model Ultra Librarian SK22BG30 CAD Model

Description

The NKK Switches SK22BG30 is a high-quality keylock switch DPDT with a current rating of 0.4VA (AC/DC).

  • Series: SK
  • Termination Style: PC pin
  • Packaging: box
  • Mounting: through the hole at a right angle
  • Ingress Protection: process sealed
  • Voltage Rating: 28V AC and DC
  • Electrical Life: 10,000 cycles
  • Mechanical Life: 30,000 cycles
  • Angle of Throw: 90°
  • Removable Positions: one
  • Operating Temperature Range: -25°C to 70°C
  • MSL Level: 1 (unlimited)
  • HTSUS Code: 8536.50.9020
