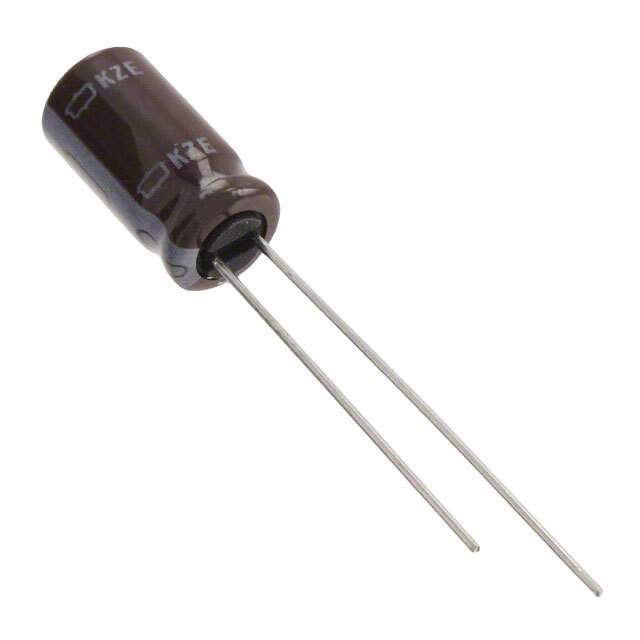

EKZE350ELL560MF11D Real Image
Same model may have multiple batches, images only for reference.

EKZE350ELL560MF11D

Part No EKZE350ELL560MF11D
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 56UF 20% 35V RADIAL / 56 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KZE
Package Bulk
Capacitance 56 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 162 mA @ 120 Hz
Ripple Current @ High Frequency 405 mA @ 100 kHz
Impedance 130 mOhms
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.433" (11.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 2,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1341295-EKZE350ELL560MF11D
Ultra Librarian 3D Model Ultra Librarian EKZE350ELL560MF11D CAD Model

Description

The KZE series aluminum electrolytic capacitor from United Chemi-Con is a high-quality, general-purpose capacitor that is designed to deliver reliable performance in a range of applications.

  • Capacitance: 56 µF
  • Voltage Rating: 35 V
  • Package: radial, can
  • Mounting: through-hole
  • Diameter: 0.248 inches (6.30mm)
  • Height: 0.433 inches (11.00mm)
  • ESR: 130 mOhms
  • Lifetime: 2000 hours @ 105°C
  • Polarization: polarized
  • Tolerance: ±20%
  • Applications: general-purpose
