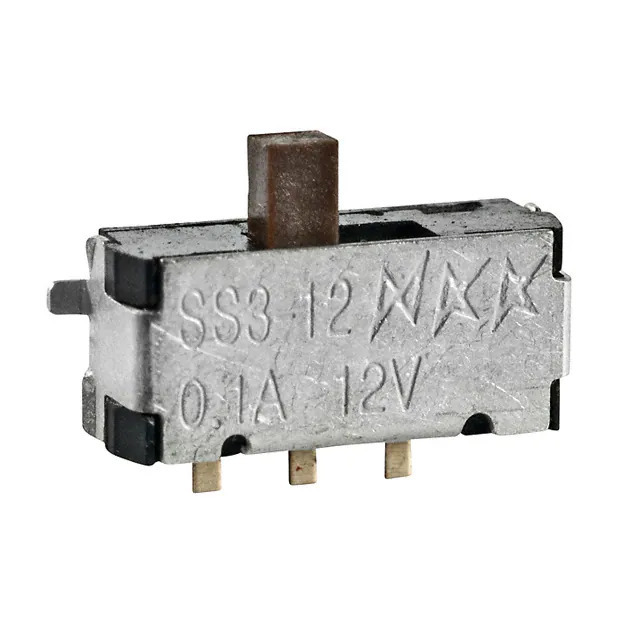

Same model may have multiple batches, images only for reference.

SS312SAH4

Name: SS312SAH4
Brand: NKK Switches
SKU: 1376321
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SS312SAH4
Manufacturer	NKK Switches
Catalog	Slide Switches
Description	SWITCH SLIDE SPDT 0.4VA 28V
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches - Slide Switches
Mfr	NKK Switches
Series	SS3
Package	Tray
Product Status	Active
Circuit	SPDT
Contact Timing	Shorting (MBB)
Switch Function	On-On
Current Rating (Amps)	0.4VA (AC/DC)
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V
Actuator Type	Standard
Actuator Length	2.00mm
Contact Material	Phosphor Bronze
Contact Finish	Gold
Mounting Type	Surface Mount, Right Angle
Termination Style	Gull Wing
Features	-
Temperature Range - Operating	-25°C ~ 85°C
Actuator Material	Polyphenylene Sulfide (PPS)
Switch Travel	2.00mm
Mechanical Life	10,000 Cycles
Electrical Life	10,000 Cycles
Operating Force	-
Base Product Number	SS312SAH
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9050
Win Source Part Number	1376321-SS312SAH4
Ultra Librarian 3D Model	Ultra Librarian SS312SAH4 CAD Model

Alternative Products

Description

The NKK Switches SS3 series slide switch is a compact electronic component suitable for various applications by NKK Switches.

Current Rating (AC/DC): 0.4VA
Voltage Rating (AC): 28V AC
Voltage Rating (DC): 28V DC
Circuit: SPDT
Switch Function: On-On
Actuator Type: Standard
Termination Style: Gull wing
Mounting Type: Surface mount, right angle
Mechanical Life: 10,000 cycles
Electrical Life: 10,000 cycles
