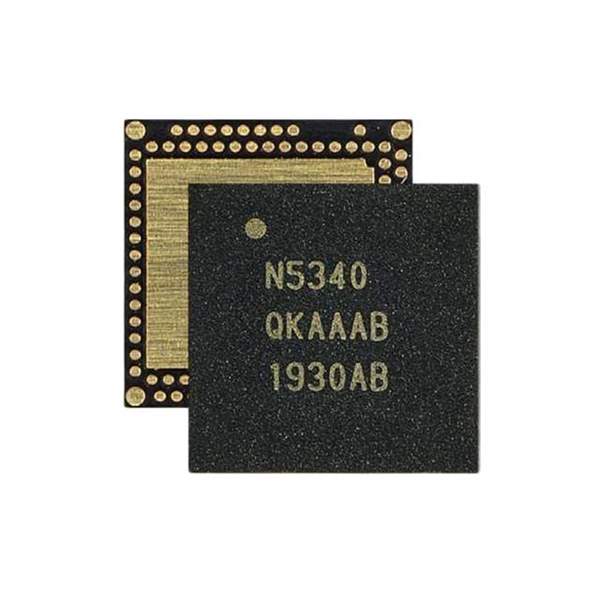

NRF5340-QKAA-R Real Image NRF5340-QKAA-R Real Image
Same model may have multiple batches, images only for reference.
NRF5340-QKAA-R Real Image NRF5340-QKAA-R Real Image
NRF5340-QKAA-R Real Image NRF5340-QKAA-R Real Image
Same model may have multiple batches, images only for reference.

NRF5340-QKAA-R

Part No NRF5340-QKAA-R
Manufacturer Nordic Semiconductors
Catalog RF Transceiver ICs
Description BLE 5.2 SOC / IC RF TxRx + MCU 802.15.4, Bluetooth Bluetooth v5.1, Thread, Zigbee® 2.4GHz 94-VFQFN Dual Rows, Exposed Pad
Datasheet
NRF5340-QKAA-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver ICs
Mfr Nordic Semiconductor ASA
Package Tape & Reel
Type TxRx + MCU
RF Family/Standard 802.15.4, Bluetooth
Protocol Bluetooth v5.1, Thread, Zigbee®
Frequency 2.4GHz
Data Rate (Max) 2Mbps
Power - Output 3dBm
Sensitivity -97.5dBm
Memory Size 1MB Flash, 256kB RAM
Serial Interfaces ADC, I²S, PWM, SPI, UART, USB
GPIO 48
Voltage - Supply 1.7V ~ 5.5V
Current - Receiving 2.6mA ~ 7mA
Current - Transmitting 3.2mA
Temperature Range - Operating -40°C ~ 105°C
Mounting SMD (SMT)
Package / Case 94-VFQFN Dual Rows, Exposed Pad
Supplier Device Package 94-aQFN (7x7)
Base Product Number NRF5340
Other Names 1490-NRF5340-QKAA-RDKR,1490-NRF5340-QKAA-RTR,1490-NRF5340-QKAA-RCT
Standard Package 3,000
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 1235853-NRF5340-QKAA-R
Ultra Librarian 3D Model Ultra Librarian NRF5340-QKAA-R CAD Model

Description

The Nordic Semiconductor NRF5340-QKAA-R is an RF transceiver IC that operates in the 2.4GHz frequency range.

  • Component Type: TxRx + MCU type
  • Package Type: Tape and reel
  • Memory Size: 1MB Flash, 256kB RAM
  • Data Rate: 2Mbps
  • Current-Receiving: 2.6mA ~ 7mA
  • Current-Transmitting: 3.2mA
  • Protocols: Bluetooth v5.1, Thread, Zigbee, and 802.15.4 protocols
