Same model may have multiple batches, images only for reference.

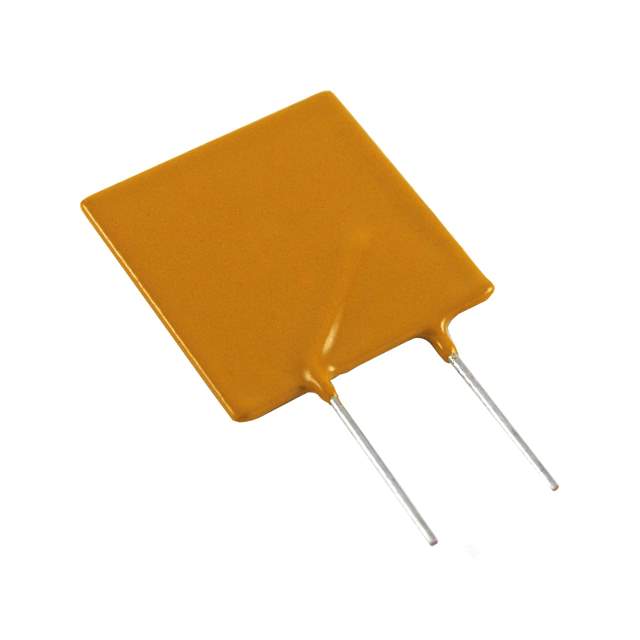

NTE16015-ECG Real Image
Same model may have multiple batches, images only for reference.

NTE16015-ECG

Part No NTE16015-ECG
Manufacturer NTE
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 30V 2.5A RADIAL  /  Polymeric PTC Resettable Fuse 30V 2.5 A Ih Through Hole Radial, Disc
Datasheet
NTE16015-ECG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr NTE Electronics, Inc
Package Bag
Type Polymeric
Voltage - Max 30V
Current - Max 40 A
Current - Hold (Ih) (Max) 2.5 A
Current - Trip (It) 5 A
Time to Trip 8.7 s
Resistance - Initial (Ri) (Min) 25 mOhms
Resistance - Post Trip (R1) (Max) 110 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.470" L x 0.118" W (12.00mm x 3.00mm)
Height - Seated (Max) 0.720" (18.30mm)
Lead Spacing 0.201" (5.10mm)
ECCN EAR99
HTSUS 8536.10.0040
Other Names 2368-NTE16015-ECG
Standard Package 1
Win Source Part Number 1056608-NTE16015-ECG
Ultra Librarian 3D Model Ultra Librarian NTE16015-ECG CAD Model

Description

The NTE16015-ECG is a polymeric type PTC resettable fuse used for circuit protection. NTE16015-ECG from NTE Electronics, Inc.

  • Type: Polymeric PTC Resettable Fuse
  • Maximum Voltage: 30V
  • Maximum Current: 40A
  • Current Hold: 2.5A
  • Current Trip: 5A
  • Time to Trip: 8.7 seconds
  • Mounting Type: Radial, Disc
  • Operating Temperature Range: -40°C to 85°C
