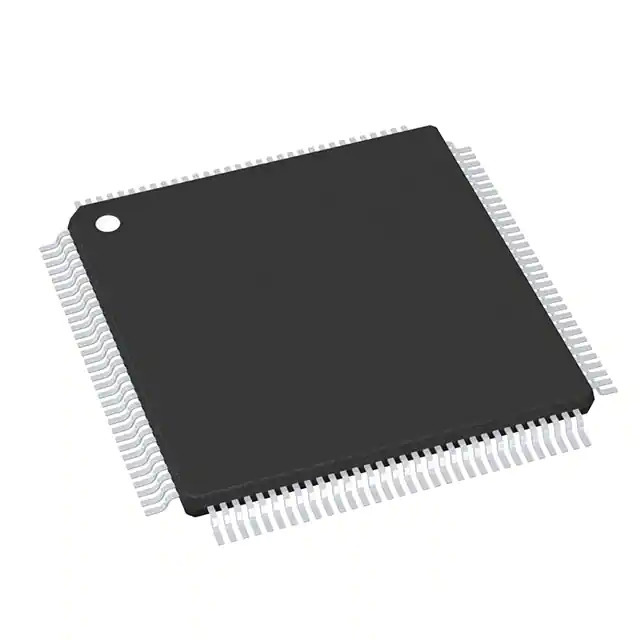

Same model may have multiple batches, images only for reference.
M487KIDAE Nuvoton Technology Corporation of America
Same model may have multiple batches, images only for reference.

M487KIDAE

Part No M487KIDAE
Manufacturer Nuvoton Technology Corporation of America
Catalog Embedded - Microcontrollers
Description IC MCU 32BIT 512KB FLASH 128LQFP / ARM® Cortex®-M4F NuMicro™ M480 Microcontroller IC 32-Bit Single-Core 192MHz 512KB (512K x 8) FLASH 128-LQFP (14x14)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Nuvoton Technology Corporation
Series NuMicro™ M480
Package Tray
Product Status Active
Core Processor ARM® Cortex®-M4F
Core Size 32-Bit Single-Core
Speed 192MHz
Connectivity CANbus, EBI/EMI, Ethernet, I²C, LINbus, SCI, SmartCard, SPI, USB
Peripherals Brown-out Detect/Reset, DMA, I²S, LCD, LVR, POR, PWM, WDT
Number of I/O 100
Program Memory Size 512KB (512K x 8)
Program Memory Type FLASH
EEPROM Size -
RAM Size 160K x 8
Voltage - Supply (Vcc/Vdd) 1.8V ~ 3.6V
Data Converters A/D 16x12b; D/A 2x12b
Oscillator Type External, Internal
Temperature Range - Operating -40°C ~ 105°C (TA)
Mounting Type Surface Mount
Package / Case 128-LQFP
Supplier Device Package 128-LQFP (14x14)
Base Product Number M487
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A002A1
HTSUS 8542.31.0001
Win Source Part Number 1352833-M487KIDAE
Ultra Librarian 3D Model Ultra Librarian M487KIDAE CAD Model

Description

The Nuvoton Technology Corporation NuMicro M487 is an embedded microcontroller that belongs to the NuMicro M480 series. Bold the product name (e.g., BAV99S,135 → NuMicro M487) and manufacturer (e.g., Nexperia USA Inc. → Nuvoton Technology Corporation).

  • Speed: 192MHz
  • Core Processor: 32-bit ARM Cortex-M4F
  • Program Memory Size: 512KB (512K x 8)
  • RAM Size: 160K x 8
  • Connectivity: CANbus, EBI/EMI, Ethernet, I²C, LINbus, SCI, SmartCard, SPI, USB
  • Peripherals: Brown-out Detect/Reset, Direct Memory Access, I²S, LCD, Low Voltage Reset, Power-On Reset, Pulse Width Modulation, Watchdog Timer
  • Package: 128-LQFP
  • Mounting Type: Surface Mount
  • Temperature Range: -40°C to 105°C
  • REACH: Unaffected
  • Status: Active
