NXP 74ABT541DB-T Octal Buffer/Line Driver

The NXP 74ABT541DB-T is a high-performance, octal buffer and line driver designed to interface with 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. This integrated circuit is a part of the 74ABT range of products known for their robustness and high-speed performance. The device is particularly suitable for driving bus lines or buffer memory address registers thanks to its bidirectional interface capability.

Featuring non-inverting buffers with 3-state outputs, the 74ABT541DB-T ensures that it can drive heavy load conditions while maintaining a high degree of signal integrity. This makes it an excellent choice for bus interface or signal buffering applications where the load is distributed over multiple lines.

Key Features:

• Logic Type: Octal Buffer/Line Driver with 3-state outputs
• Operating Voltage: 4.5V to 5.5V, making it ideal for 5V systems
• Output Capability: Capable of sinking 64 mA and sourcing 15 mA, which enables the device to drive multiple lines with ease
• High-Speed Performance: The device operates at a typical shift frequency of 190 MHz, ensuring rapid data transfer and processing

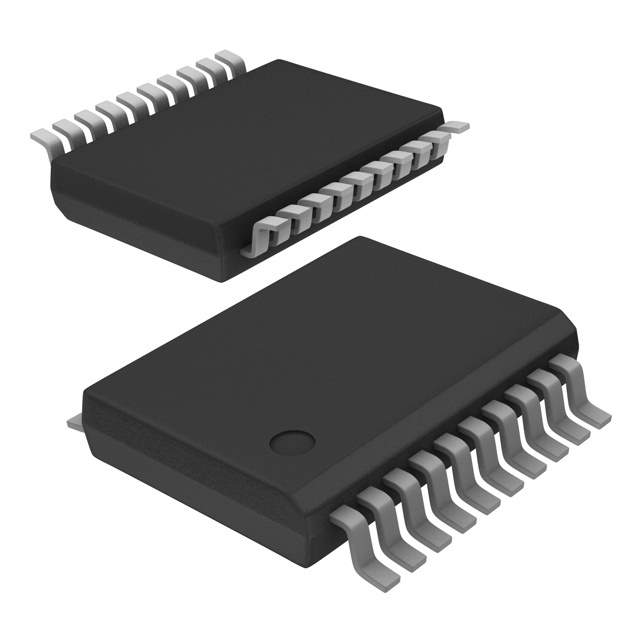

• Package Type: Provided in a 20-pin SSOP package, it is compact and suitable for space-constrained applications
• Temperature Range: It can operate within a temperature range of -40°C to +85°C, making it reliable in a wide range of environmental conditions
• Low Power Dissipation: The IC has a reduced power consumption profile, which is critical for energy-efficient designs

With its built-in bus-hold data inputs, the 74ABT541DB-T eliminates the need for external pull-up resistors to hold unused or floating data inputs at a valid logic level. This feature simplifies PCB design and reduces component count, leading to a more efficient and cost-effective solution.

Overall, the NXP 74ABT541DB-T is a versatile and reliable component that offers exceptional performance for a variety of digital applications. Its ability to provide high drive capability while maintaining signal integrity makes it a preferred choice for system designers who require a robust buffering solution.
