Product Overview: 74AHC123APW-T by NXP Semiconductors

The 74AHC123APW-T is a high-speed, CMOS device from NXP Semiconductors designed to meet the requirements of high-performance timing circuits. This integrated circuit belongs to the 74AHC family, which is known for its low power consumption and high noise immunity equivalent to that of the standard 74HC logic family. The 74AHC123APW-T is particularly suitable for applications requiring precise pulse generation and timing control, such as in digital computers, instrumentation, and control systems.

Key Features

• Dual Retriggerable Monostable Multivibrator: The device contains two independent monostable multivibrators, making it versatile for various timing tasks.
• Wide Operating Voltage Range: It operates over a broad voltage range from 2.0V to 5.5V, ensuring compatibility with a variety of logic families and allowing it to be used in both 3.3V and 5V systems.
• High-Speed Performance: The 74AHC123APW-T boasts a typical propagation delay of only 16ns, providing fast response times for critical timing applications.
• Output Pulse Width Control: Pulse width is controlled by external resistors and capacitors, offering the designer flexibility to customize the timing characteristics as needed.
• Schmitt-Trigger Action: Inputs incorporate Schmitt-trigger action, which enables the circuit to handle slower input rise and fall times, contributing to its enhanced noise immunity.
• Output Capability: Capable of driving up to 8 LSTTL loads, the device provides sufficient drive capability for most applications.
• Temperature Range: The operating temperature range of -40°C to +125°C ensures reliable performance in a wide range of environmental conditions.

Package and Quality

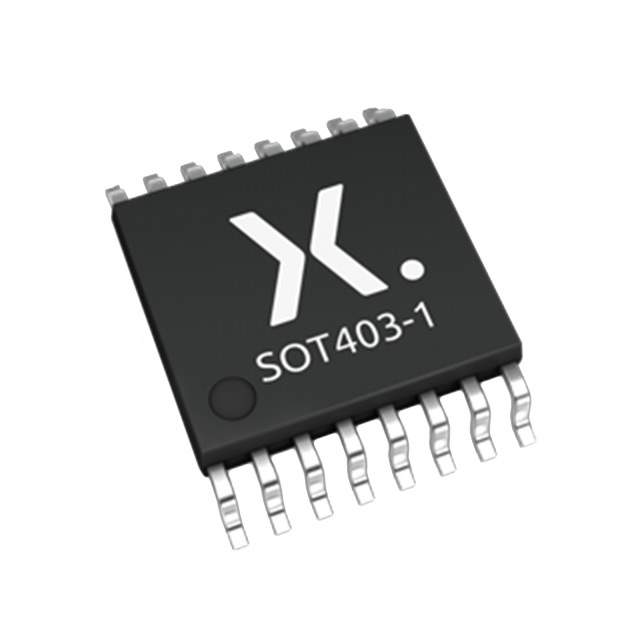

The 74AHC123APW-T comes in a TSSOP16 (thin shrink small outline package) with a width of 4.4mm, making it a compact solution for space-constrained applications. This packaging is suitable for surface mount technology (SMT) and provides good thermal performance. NXP Semiconductors is committed to high-quality standards, and this product is no exception, ensuring reliability and performance consistency.

Applications

With its precise timing capabilities, the 74AHC123APW-T is ideal for a range of applications such as:

• Timing circuits
• Pulse generation
• Waveform shaping
• Sequential logic operations
• Industrial controls
• Automotive systems

Overall, the 74AHC123APW-T from NXP Semiconductors is a robust and reliable component for designers seeking a dual retriggerable monostable multivibrator with high-speed performance and flexible voltage operation.
