NXP 74AUP1G86GF Low-Power 2-Input XOR Gate

The NXP 74AUP1G86GF is a high-performance, low-power 2-input Exclusive OR (XOR) gate, designed for minimal power consumption while maintaining excellent speed performance. This component is part of NXP's advanced ultra-low power (AUP) family and is ideal for battery-powered and portable applications where power efficiency is crucial.

Fabricated with advanced silicon-gate CMOS technology, the 74AUP1G86GF ensures a very low static and dynamic power consumption across its entire V_CC range of 0.8V to 3.6V. This feature, combined with an extremely low input leakage current, makes it suitable for use in a variety of applications that require efficient energy usage.

The device is optimized for operation over a broad temperature range of -40°C to +125°C, making it reliable in extreme conditions and suitable for industrial-grade applications. Its balanced propagation delays and output transition times provide consistent performance, which is essential for maintaining signal integrity in high-speed digital circuits.

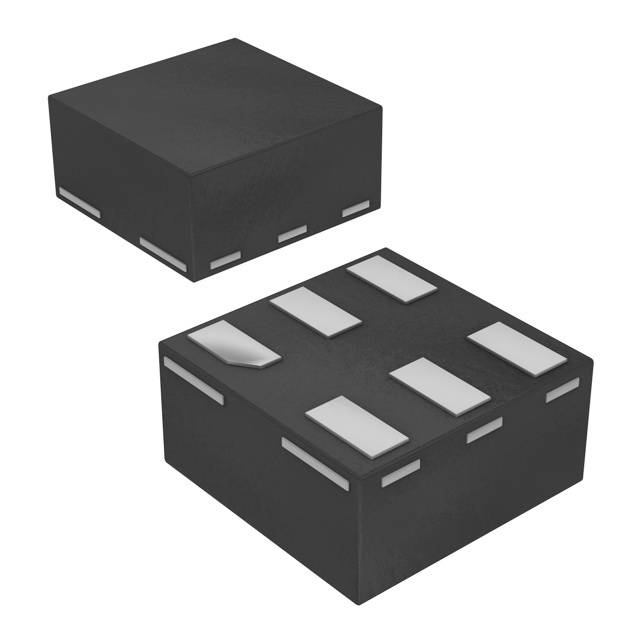

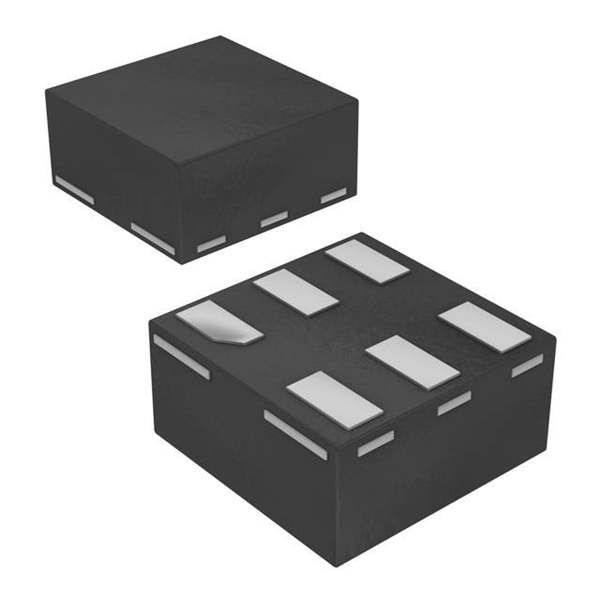

The 74AUP1G86GF comes in a very small 6-pin XSON package, which is perfect for space-constrained applications. Despite its compact size, it offers a high level of integration, providing a robust and versatile solution for implementing logic functions in your circuit design.

Key features of the NXP 74AUP1G86GF include Schmitt-trigger action at all inputs, which makes the circuit tolerant to slower input rise and fall times. This feature is especially useful in environments with a lot of electrical noise, as it helps to prevent false switching. Additionally, the device is fully specified for partial Power-down applications using IOFF. The IOFF circuitry disables the output, preventing damaging current backflow through the device when it is powered down.

Whether you are designing consumer electronics, IoT devices, or sophisticated industrial controls, the NXP 74AUP1G86GF offers a reliable and power-efficient solution for your XOR logic needs.
