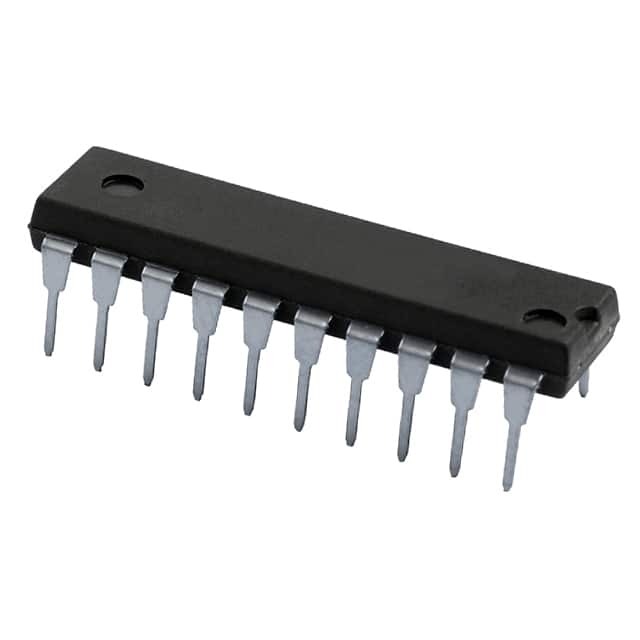

Product Overview: 74HCT4351N,112

The 74HCT4351N,112 is a high-speed Si-gate CMOS device from NXP Semiconductors, renowned for its exceptional performance and versatility. This particular component is part of the 74HCT family, which is compatible with TTL levels, and is designed to function as an 8-channel analog multiplexer/demultiplexer with three digital select inputs (S0, S1, and S2), an active LOW enable input (E), eight independent inputs/outputs (Yn), a common input/output (Z), and a digital output (Y) that indicates the status of the E input.

Key Features:

• Versatility: The 74HCT4351N,112 can be used as an 8-channel multiplexer, a demultiplexer, or a combination of both, providing flexibility in application design.
• Logic Level Compatibility: This device is designed to interface with TTL levels, ensuring easy integration into existing digital systems.
• Low ON Resistance: The switch offers a low ON resistance, which minimizes signal distortion and ensures high-quality signal transmission.
• Low Crosstalk: Engineered to have low crosstalk between switches, the 74HCT4351N,112 ensures signal integrity, making it ideal for analog signal switching.
• High-Speed Operation: As part of the high-speed CMOS family, this device is capable of operating with a fast response time, suitable for high-performance applications.
• Wide Operating Voltage Range: It operates over a wide voltage range from 2V to 6V, providing design flexibility for various power supply conditions.
• ESD Protection: The device includes electrostatic discharge protection to safeguard against inadvertent damage during handling and operation.

Applications:

The 74HCT4351N,112 is adept at handling both digital and analog switching, making it an excellent choice for a variety of applications, including:

• Analog signal routing and multiplexing
• Data acquisition systems
• Communication systems
• Audio/Video signal switching
• Function generators
• Industrial control systems

With its robust design and comprehensive features, the 74HCT4351N,112 from NXP is a reliable and efficient solution for designers looking to incorporate flexible and high-performance analog multiplexing/demultiplexing capabilities into their electronic systems.
